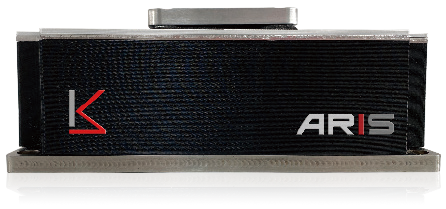

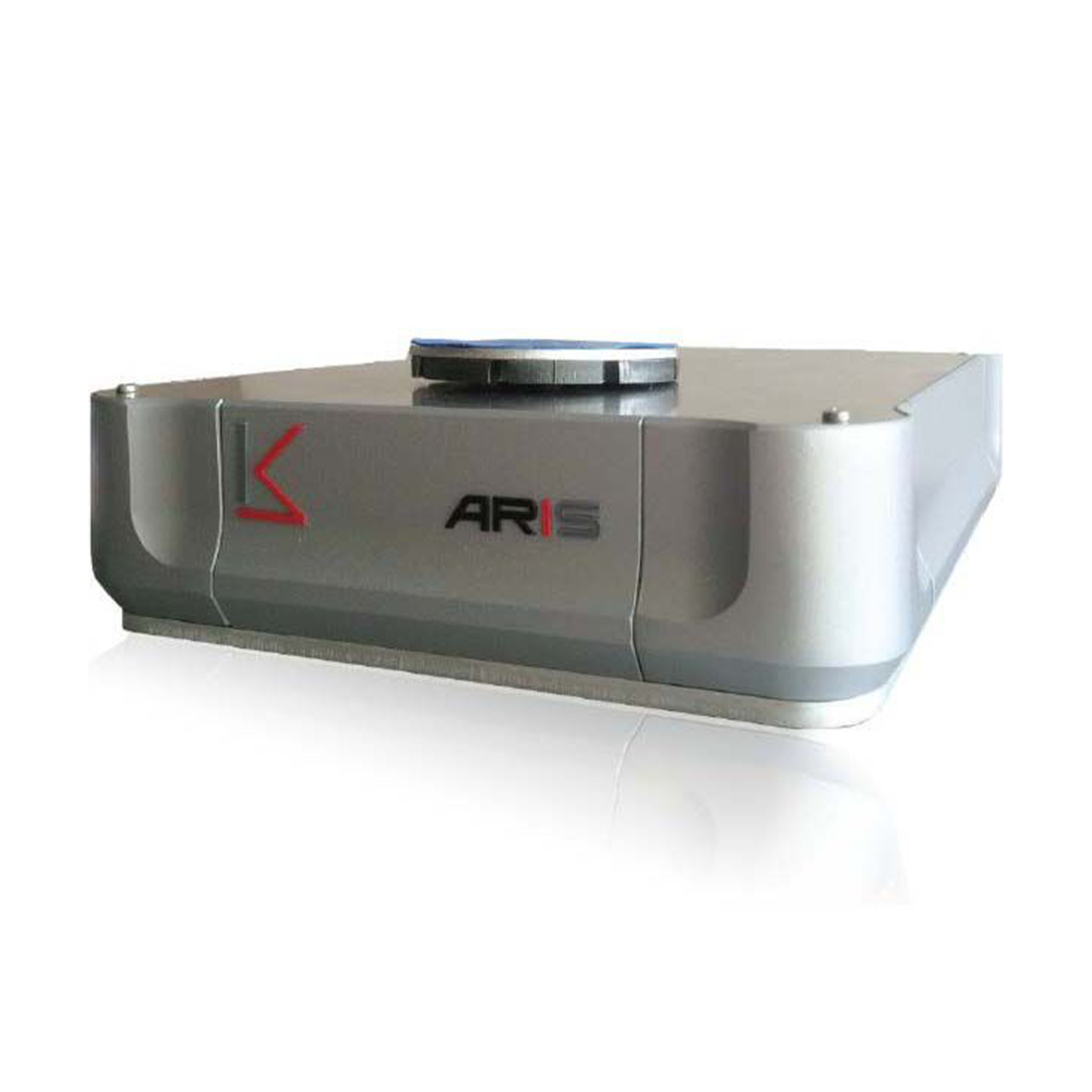

ARIS-MD Modular Active Vibration Isolator

ARIS-MD Modular Active Vibration Isolator Overview -

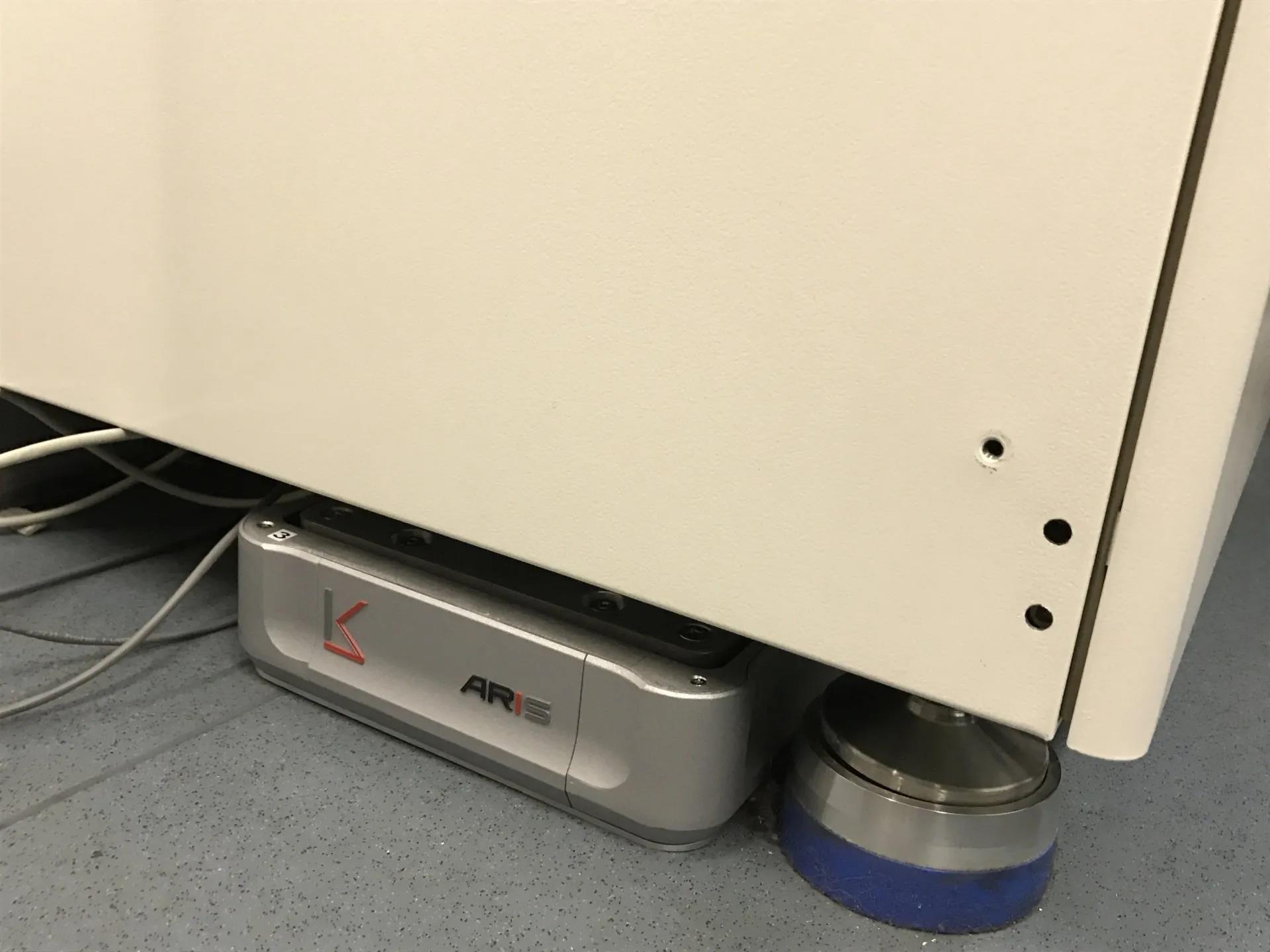

A lightweight, compact modular active vibration isolation system that can cancel out minor vibrations of sensitive equipment. Its simplified design allows it to be part of a workstation environment without the need for further adjustments.
ARIS-MD Modular Active Vibration Isolator Advantage +

➤ Lightweight and compact, does not take up space
➤ Counters minor vibrations of sensitive equipment
➤ Easy to install and operate
ARIS-MD Modular Active Vibration Isolator Performance +

➤ 6 degrees of freedom
➤ Active vibration isolation with variable damping from 0.5Hz to 100Hz
➤ Built-in AI functionality
➤ Bandwidth adjustable via software
➤ Remote control
➤ Built-in real-time diagnostic tools
- Spectrum analysis function
- Oscilloscope
➤ Isolator mode

Model	ArisMD300 pro	ArisMD500 pro	ArisMD1000 pro	ArisMD2000 pro
Size（W×D×H）mm	270×230×75
Load（kg）	100-300 Per module (Total quantity unlimited)	200-500Per module (Total quantity unlimited)	500-1000 Per module (Total quantity unlimited)	800-2000 Per module (Total quantity unlimited)
Actuator Force	Vertical：150N
	Horizontal：75N
Active vibration isolation frequency（Hz）	0.5 – 100 Hz
Structure	MVIS –Multi-layer vibration isolation structure
Degree of freedom	6 degree of freedom

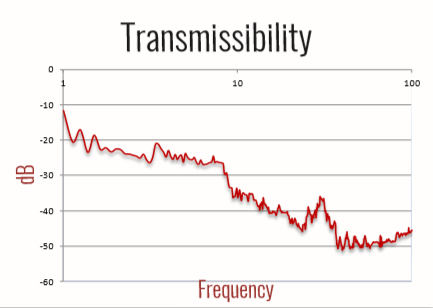

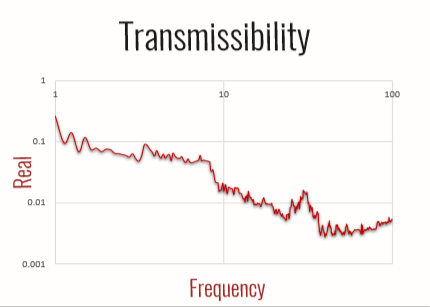

Vibration isolation performance	1Hz -8db
	2Hz -20db
Stabilization time	≤ 0.1 second
Real-time diagnostic tool	Built-in real-time 2-channel oscilloscope
	Real-time 2-channel spectrum analyzer for each module and each system
