TRIAXDYN Anti-Vibration Mount

TRIAXDYN Anti-Vibration Mount的概况 -

DESCRIPTION
This anti-vibration mount Triaxdyn comprises two elastomers which are assembled into a casting and preloaded.

The mounting is designed to offer :a large deflection (in axial); different stiffness in three axis; built-in stops to limit movement in all directions.

Note : the mount body can be modified to offer alternative interface dimensions providing the internal interface with the elastomer is maintained.

APPLICATIONS

This mount has been designed to isolate engines or cabs in fixed or mobile applications with a high

level of isolation and shock protection. Its compact design enables fail safe suspension of loads from 150 to 280 kg.
TRIAXDYN Anti-Vibration Mount的优势 +

The mounting is designed to offer :a large deflection (in axial); different stiffness in three axis; built-in stops to limit movement in all directions.

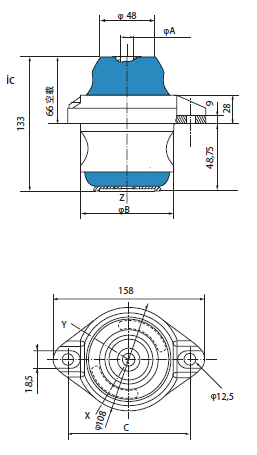

Reference	Ø A (mm)	Ø B (mm)	C (mm)
905233	12,4	94	128
