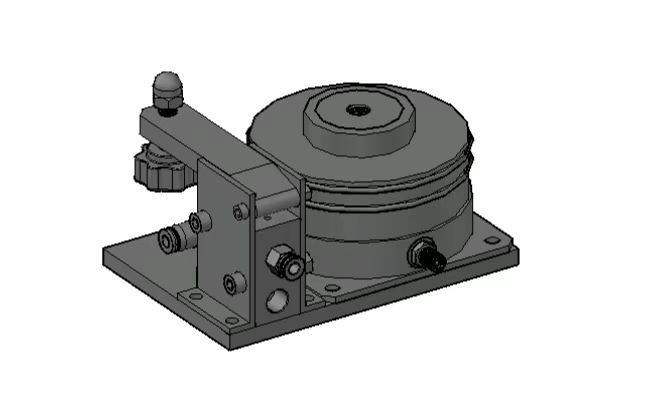

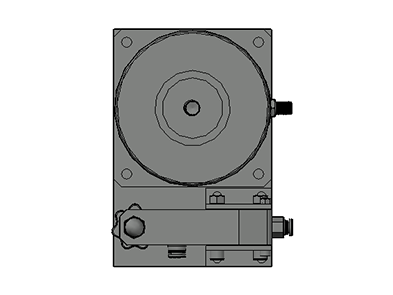

SLM-MD Air Spring Isolator

SLM-MD Air Spring Isolator Overview -

Structure:
Elastomer-metal combination with screwable

base plate, gas chamber made of elastomeric

material, reinforced with steel rings, 10 sizes.
SLM-MD Air Spring Isolator Advantage +
SLM-MD Air Spring Isolator Performance +

Performance:
• Low-frequency active or passive damping

• The vertical and horizontal stiffness is

about 1:1

• Vibration isolation

• Impact absorption

• Structural soundproofing

• No anchoring is required

• It can be operated without inflation

• Load range: 0.2 – 100 kN

• Natural frequency (static) 3 – 5 Hz

• Natural frequency (static) is not inflated at 8Hz

Leveling Range:

±5 - 6 mm, barometric control

Options:

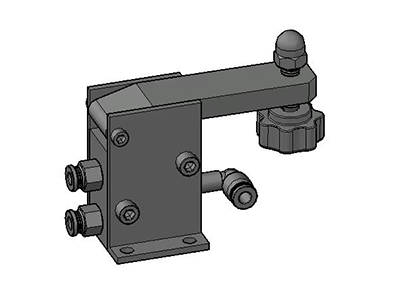

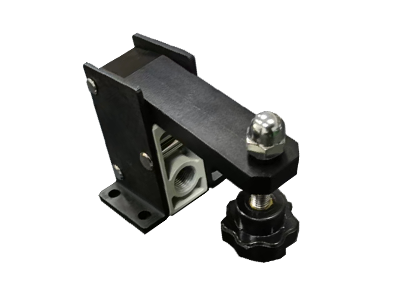

Automatic leveling control:

• Mechanical-pneumatic version

• Electric-pneumatic version

SLM-MD Air Spring Isolator Specifications +

SLM series	Diameter	Installation height H0	Base size D1	The support surface fixes the size of the threaded hole G	Overall length L	Machine foot thickness(max.)	Lifting range of height Ni	Height of support surface X	Width of base plate A	Base hole spacing b	Base fixing hole size d	Base plate thickness	Weight kg	Maximum load kN
SLM 1	73	65	28	M10	80	50	±5	12	75	60	7	3	0.3	0.65
SLM 3	105	65	52	M12	90	65	±5	12	105	89	7	3	0.5	1.8
SLM 6	127	90	60	M12	90	65	±6	15	130	108	7	3	1.0	2.8
SLM 12	172	90	96	M12	90	65	±6	15	175	153	7	3	2.2	6.0
SLM 24	245	90	138	M16	100	75	±6	15	255	215	14	5	7.2	13.0
SLM 48	338	90	205	M16	100	75	±6	15	343	305	14	5	14.7	26.0
SLM 72	380	91	255	M24 x 1.5	140	75	±6	17	385	310	20	6	22.5	38.0
SLM 96	468	90	300	M24	130	75	±6	15	470	406	20	6	29.3	55.0
SLM 144	550	91	360	M24 x 1.5	140	75	±6	17	555	480	20	6	46.5	76.0
SLM 192	610	90	430	M24	130	75	±6	15	610	508	20	6	52.5	100.0

Unit: mm

L = bolt length
