MPP Coupling Isolator

MPP Coupling Isolator Overview -

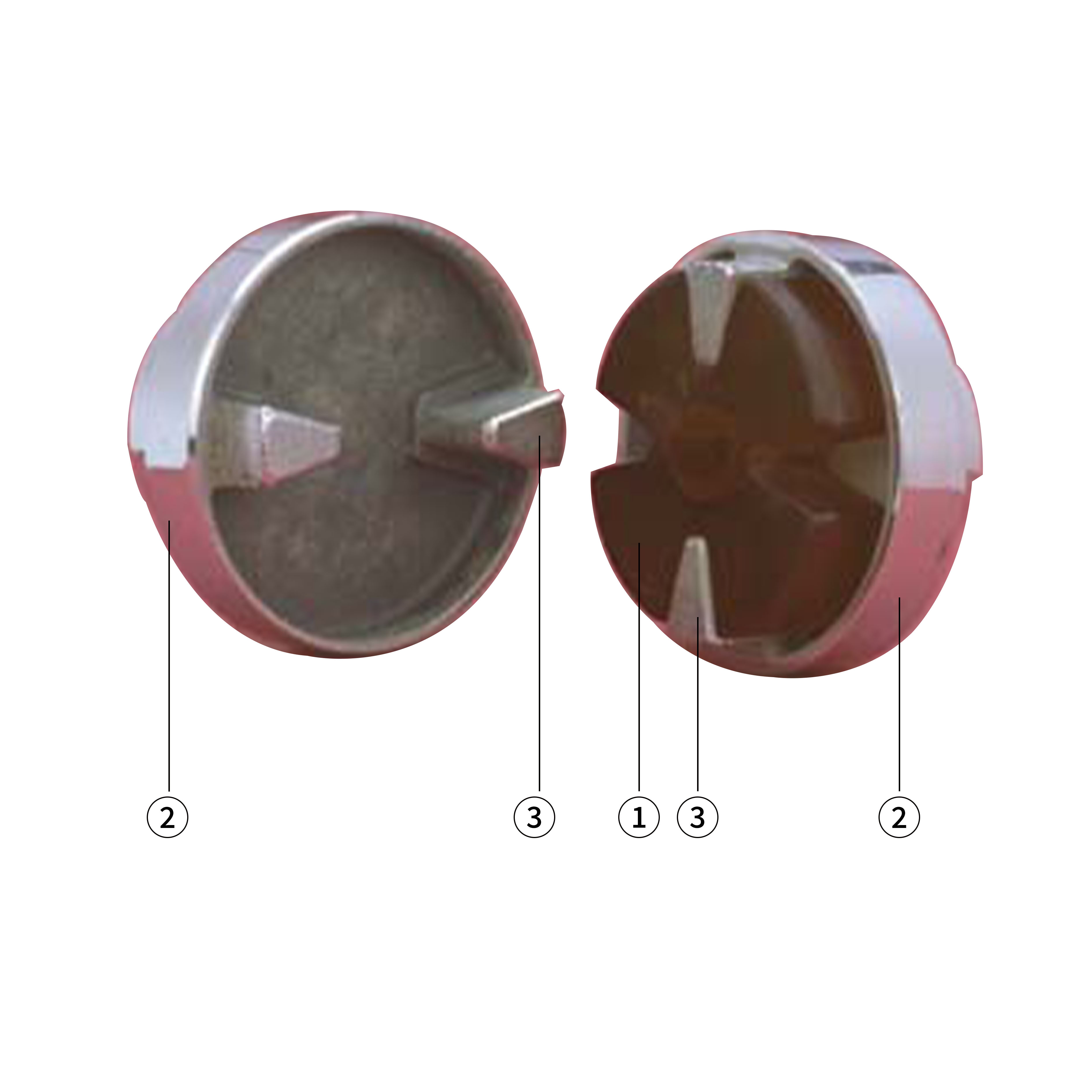

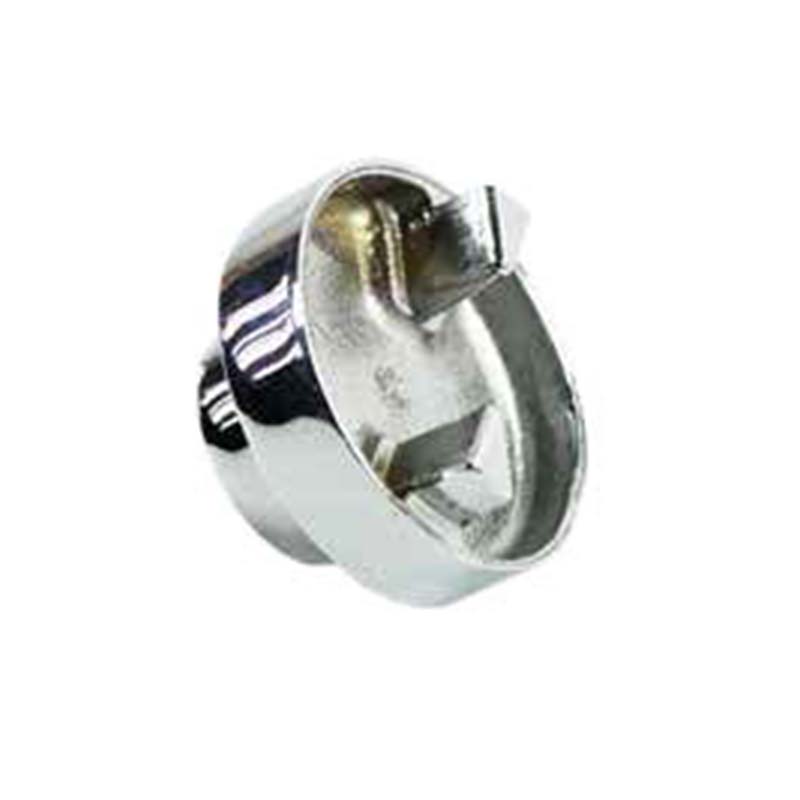

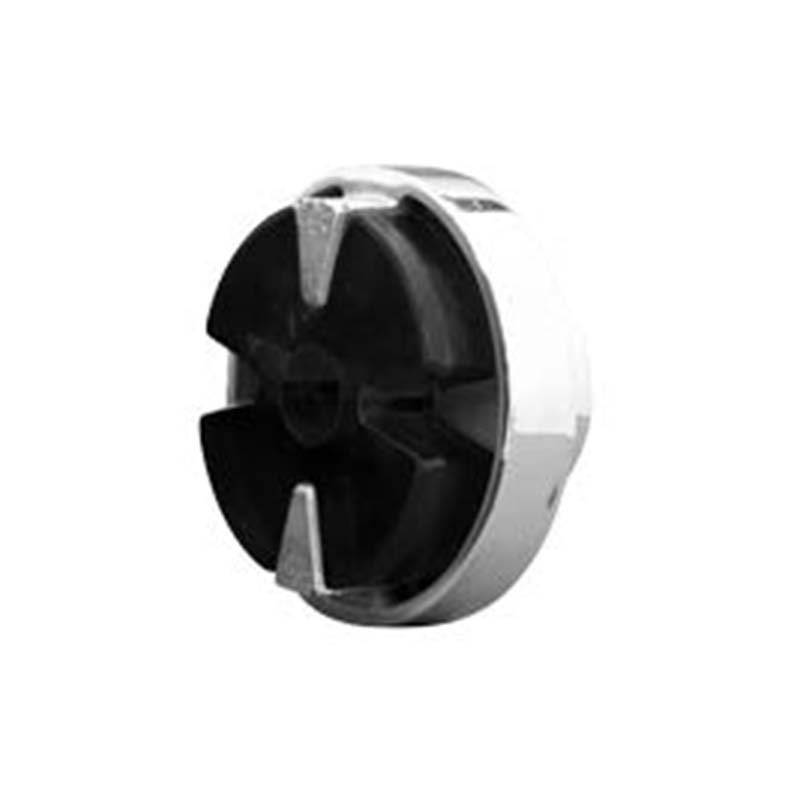

Flexible element 1 : polyurethane in the form of a Maltese cross.
Flange 2 : cast iron with drive segments 3: supplied unbored (except 633054 and 633055).
MPP Coupling Isolator Advantage +

The MPP coupling is designed with the following features :
➤push fit assembly;

➤ smooth, compact cylindrical shape, without protrusions;

➤the flexible element operates under compression;

➤safe in use;

➤ temperature range -30°C to + 70°C in continuous operation.

Advantages

➤Reduced size.

➤Easy to use.

Recommendation

n It is recommended that the coupling should not be subjected to axial tension which might cause

the flexible element to slip off the drive segments on the flanges.
MPP Coupling Isolator Performance +

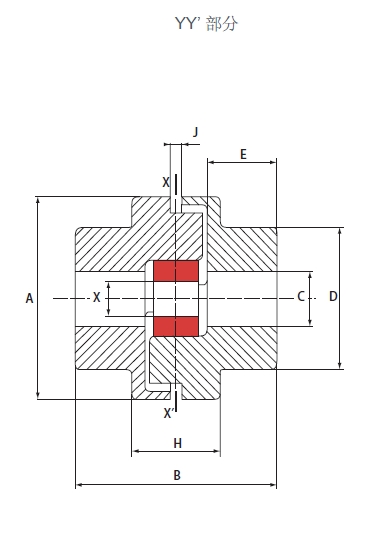

DIMENSIONS

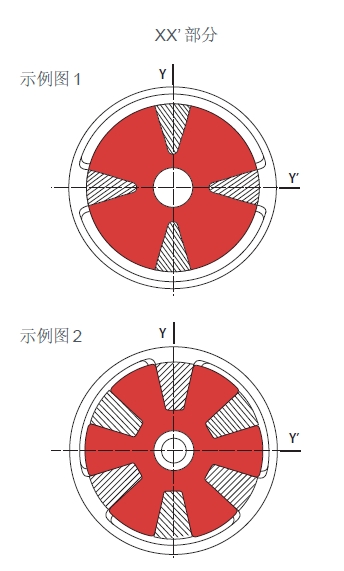

弹性联轴器-MPP(图1)

Type	Shape.	Nominal torque TCN-N.m	Max torque N.m	Max speed rpm	Hole size		A mm	B mm	D mm	E mm	Reference	H mm	j mm	X mm	Weight kg
Type	Shape.	Nominal torque TCN-N.m	Max torque N.m	Max speed rpm	min	max	A mm	B mm	D mm	E mm	Reference	H mm	j mm	X mm	Weight kg
MPP 3	1	30	90	9000	-	28	58	62	42	20	633052	32	3	10	0.6
MPP 8	1	80	240	7000	-	42	84	89	63	30	633053	41	5	13	1.8
MPP 20	1	200	600	4000	-	55	118	116	82	40	633051	51	6	20	4.5
MPP 38	2	380	1150	3000	20	60	145	160	90	60	533054	67	6	30	9.4
MPP 65	2	650	2000	3000	20	75	170	208	208	80	633055	82	6	32	18

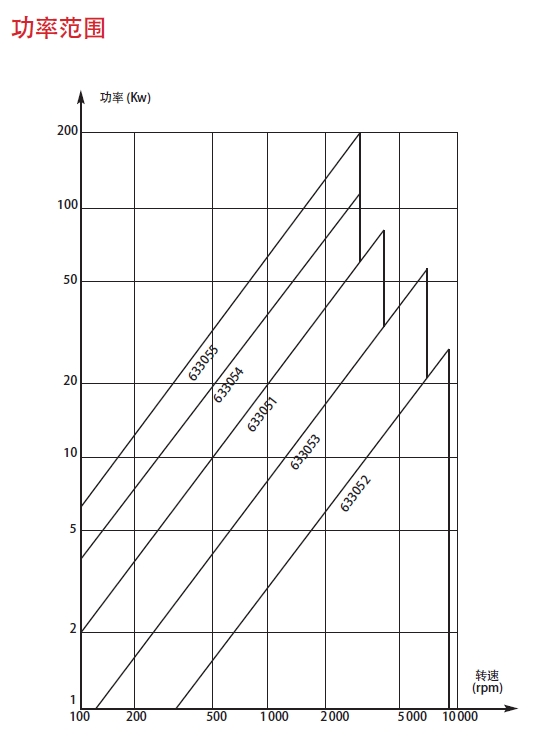

Features
弹性联轴器-MPP(图3)

OPERATING CHARACTERISTICS

Nominal torque N.m	Vibratory torque N.m	Torsion under NT (degrees)	Radial misalignment mm	Conical misalignment mm	Axial misalignment mm
30	15	10°	0.2	1°	1.5
80	40	10°	0.4	1°	2.5
200	100	10°	0.9	1°	3
380	380	10°	1	1°	3
650	650	10°	1	1°	4

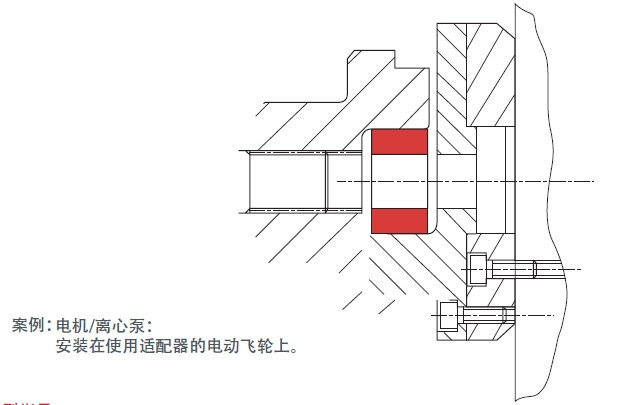

ASSEMBLY

弹性联轴器-MPP(图4)
