SLM-DD Air Spring Isolator

SLM-DD Air Spring Isolator Overview -

Structure: SLM standard air spring series, with built-in viscous damping, available in 6 sizes.
SLM-DD Air Spring Isolator Advantage +
SLM-DD Air Spring Isolator Performance +

Performance:

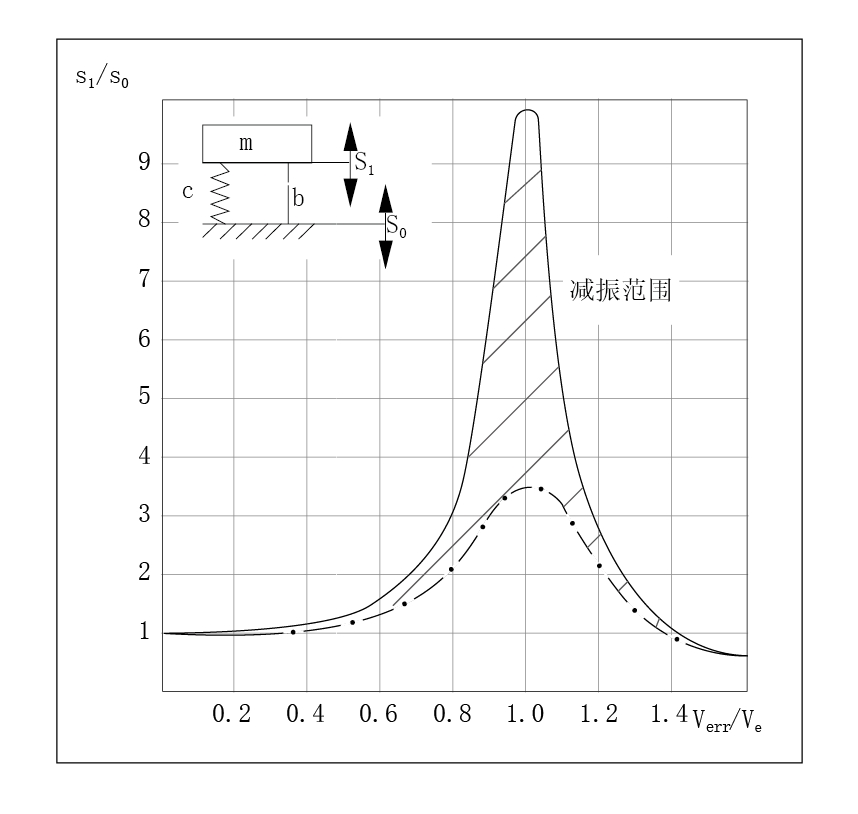

• With vertical source isolation, resonances can be reduced by

up to 70%.

• Can be used in the resonance region

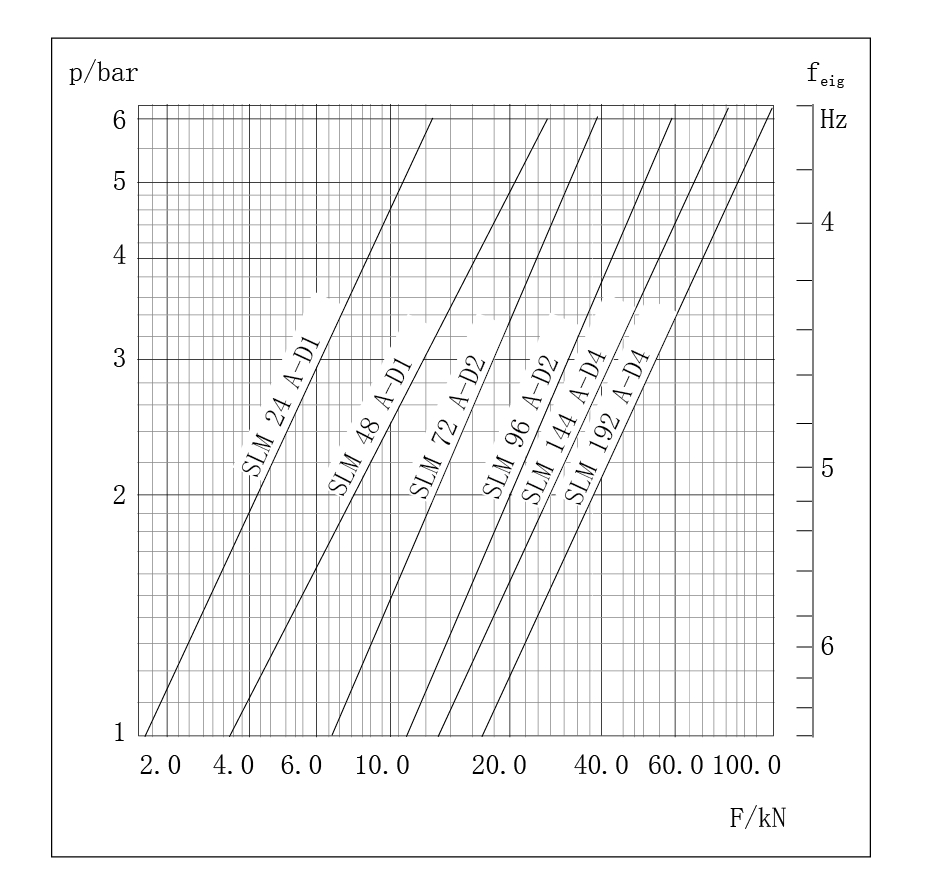

• Load range 3.0 – 100 kN

• Natural frequency (static) 4 – 7 Hz

• Low-frequency active or passive damping

• The vertical and horizontal stiffness is about 1:1

• Vibration isolation

• Impact absorption

• Structural soundproofing

• No anchoring is required

• It can be operated without inflation

SLM series	Diameter	Installation height H0	Base size D1	The support surface fixes the size of the threaded hole G	Overall length L	Machine foot thickness(max.)	Lifting range of height Ni	Height of support surface X	Width of base plate A	Base hole spacing b	Base fixing hole size d	Base plate thickness T	Weight kg	Maximum load kN
SLM 12 - D1	172	90	96	M12	90	75	±6	15	175	153	7	3	20.2	6
SLM 24 - D1	245	90	138	M16	100	75	±6	15	255	215	14	5	8.2	13
SLM 48 - D1	338	90	205	M16	100	75	±6	15	343	305	14	5	16.1	26
SLM 72 - D2	380	91	255	M24 x 1.5	140	75	±6	17	385	310	20	6	13.9	38
SLM 96 - D2	468	90	300	M24	130	75	±6	15	470	406	20	6	32	55
SLM 144 - D4	550	91	360	M24 x 1.5	140	75	±6	17	555	480	20	6	47.9	76
SLM 192 - D4	610	90	430	M24	130	75	±6	15	610	508	20	6	57.9	100
