BenchTop-MSD Desktop Isolator

BenchTop-MSD Desktop Isolator Overview -

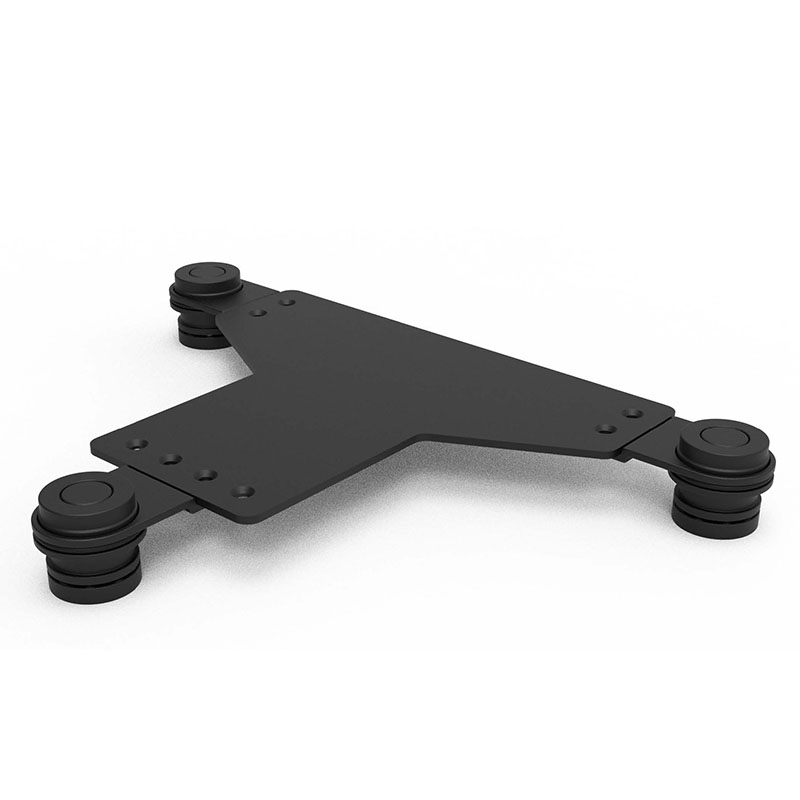

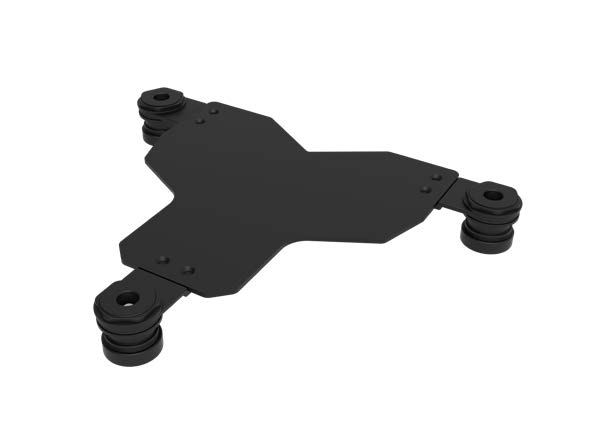

The BenchTop-MSD series is a small instrument vibration isolation platform composed of multiple steel spring dampers, commonly used under high-precision instruments such as microscopes.
BenchTop-MSD Desktop Isolator Advantage +

Product Features:
➤ This vibration isolation platform is composed of multiple specially designed small vibration isolators and a tabletop.
➤ The vibration isolators contain steel springs of different specifications, and users can choose the steel spring load according to the weight and requirements of the equipment being used.
➤ Users can select the platform size and the number of shock absorbers based on the shape of their equipment.
➤ The platform shape can be chosen according to the specific equipment being used (customization is available).

Model	0304	0405	0506	0608	0810
Size mm	300x400	400x500	500x600	600x800	800x1000
Height mm	100
Load kg	15-145
Natural frequency Hz	3.5
Material	aluminum sheet
Option	1. Marble countertop 2. Threaded hole
