OPTPDD Broadband Damping Optical Platform
-
OPTPDD Broadband Damping Optical Platform Overview -
The honeycomb optical platform tabletop has high strength, requires minimal maintenance and adjustment, and has a stable structure.
The four corners of the honeycomb optical platform tabletop are equipped with passive damping devices (TMDs). These are passive vibration reduction devices composed of a mass, spring, and damper, attached to the structure to reduce its dynamic response.
The damper's frequency is tuned to a specific structural frequency, so when that frequency is excited, the damper will produce out-of-phase resonance with the structure's motion. Energy is dissipated onto the structure through the inertial force of the damper. With proper tuning, the TMD will replace the high peak of the structural resonance frequency with two much smaller peaks.
-
OPTPDD Broadband Damping Optical Platform Advantage +
Product Features
➤ Broadband damping structured work surface can eliminate surface resonance, honeycomb core
➤ Lightweight, 5 mm thick 430 stainless steel work surface with good rigidity
➤ Vertically bonded truss hexagonal honeycomb core
➤ Sealed holes with easy-to-clean polymer cups
➤ No welding stress, tabletop will not warp over time due to stress
➤ High performance at a low cost
-
OPTPDD Broadband Damping Optical Platform Performance +
Honeycomb structure vibration isolation platform table, used as a carrier for optical experiments, medical experiments, precision instrument production and testing, aerospace experiments, and more.
Due to its high stiffness-to-weight ratio, it can improve experimental accuracy and provide a solid mounting platform. Its structure is a honeycomb hollow design, including upper and lower panels, polymer cups, and a honeycomb core panel.
It facilitates the fixed installation of experimental accessories. The panels are made of high magnetic permeability stainless steel (430), which does not rust on the surface, ensuring laboratory cleanliness.
The polymer cups are made of stretched aluminum stamping, preventing internal noise vibrations from causing experimental errors, while also being dustproof, waterproof, and preventing small objects from falling into the platform, making cleaning easier.
The internal honeycomb core panel is made from trapezoidal thin steel plates bonded together with steel plates in between to form a honeycomb shape. This structure maintains stiffness while reducing the core panel's weight.
-
OPTPDD Broadband Damping Optical Platform Specifications +
.jpg)

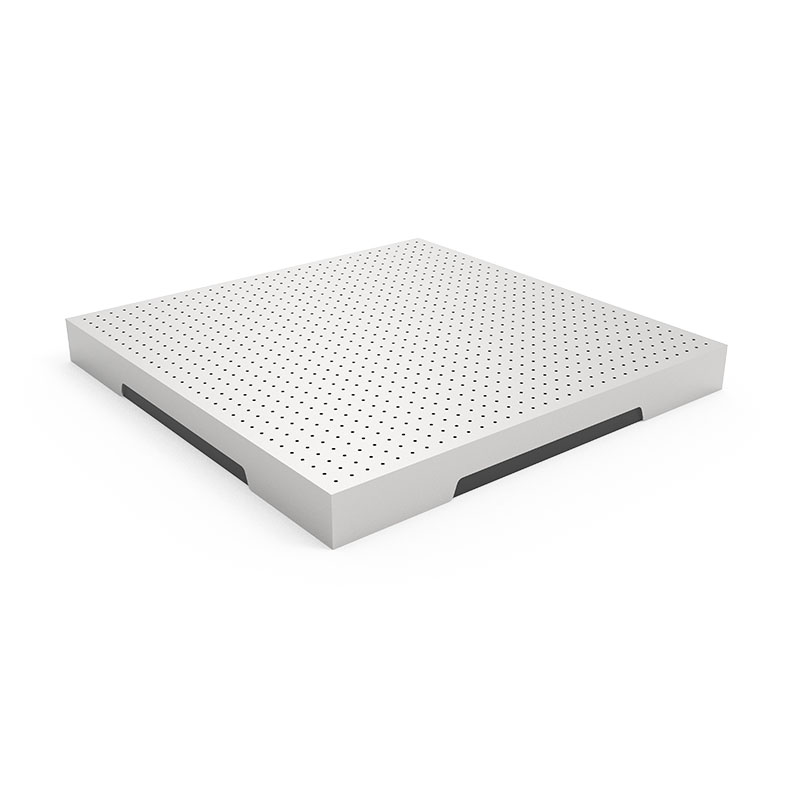

25/50 series
Product structure and characteristics Damping structureThe use of a broadband Damping structure (microporous airDamping) eliminates surface resonancesTable topmaterialIt is made of high permeability stainless steel, 1Cr17 material(430), surface polishing matt Midi texture treatment or 304stainless steel material.Inner corestructureThe inner core adopts a honeycomb structure, and anisolation cup is installed on the reverse side of the tabletop, and the isolation cup is made of stretched aluminumstamping or nylon material isolation cup; It can be dustproof,waterproof, and prevent small items from falling into theinside of the platform, which is easy to clean.Table topbaseplateUse carbon steel plate, do anti-rust treatment or use stainlesssteel material.Side hoardings It is made of high-density compressed synthetic panel,aluminum-plastic panel and stainless steel cladding.Threaded holesin the table topM6 screw hole, hole spacing 25×25 mm, hole margin 37.5mm.Flatness of thetable top±0.1 mm/m2 Surfaceroughness0.8 - 1.6 μm
OPTPDD 25 Series Length × Width × Height
Weight
kgmm in OPTPDD-0504-25H-I/M 500*400*25 20*16*1 16 OPTPDD-0505-25H-I/M 500*500*25 20*20*1 20 OPTPDD-0605-25H-I/M 600*500*25 24*20*1 24 OPTPDD-0606-25H-I/M 600*600*25 24*24*1 29 OPTPDD-0707-25H-I/M 700*700*25 28*28*1 40 OPTPDD-0808-25H-I/M 800*800*25 32*32*1 51 OPTPDD-0906-25H-I/M 900*600*25 36*24*1 43 OPTPDD-0975-25H-I/M 900*750*25 36*30*1 54 OPTPDD-0909-25H-I/M 900*900*25 36*36*1 65 OPTPDD-1006-25H-I/M 1000*600*25 40*24*1 48 OPTPDD-1075-25H-I/M 1000*750*25 40*30*1 60 OPTPDD-1010-25H-I/M 1000*1000*25 40*40*1 80 OPTPDD-1206-25H-I/M 1200*600*25 48*24*1 58 OPTPDD-1290-25H-I/M 1200*900*25 48*36*1 86 OPTPDD-1212-25H-I/M 1200*1200*25 48*48*1 115 OPTPDD-1509-25H-I/M 1500*900*25 60*36*1 108 OPTPDD-1512-25H-I/M 1500*1200*25 60*48*1 144 OPTPDD-1515-25H-I/M 1500*1500*25 60*30*1 180

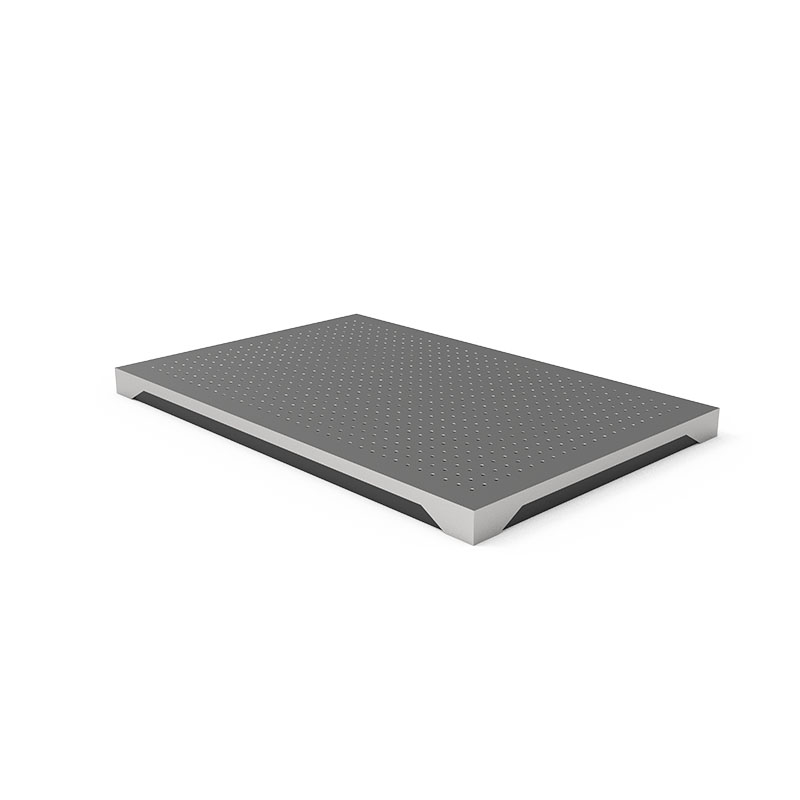

100/200seriesOPTPDD 50 series Length × Width × Height
Weight
kgmm in OPTPDD-0504-50H-I/M 500*400*50 20*26*2 20 OPTPDD-0505-50H-I/M 500*500*50 20*20*2 25 OPTPDD-0605-50H-I/M 600*500*50 24*20*2 30 OPTPDD-0606-50H-I/M 600*600*50 24*24*2 36 OPTPDD-0707-50H-I/M 700*700*50 28*28*2 49 OPTPDD-0808-50H-I/M 800*800*50 32*32*2 64 OPTPDD-0906-50H-I/M 900*600*50 36*24*2 54 OPTPDD-0975-50H-I/M 900*750*50 36*30*2 67 OPTPDD-0909-50H-I/M 900*900*50 36*36*2 81 OPTPDD-1006-50H-I/M 1000*600*50 40*24*2 60 OPTPDD-1075-50H-I/M 1000*750*50 40*30*2 75 OPTPDD-1010-50H-I/M 1000*2000*50 40*40*2 100 OPTPDD-1206-50H-I/M 1200*600*50 48*24*2 72 OPTPDD-1290-50H-I/M 1200*900*50 48*36*2 108 OPTPDD-1212-50H-I/M 1200*2200*50 48*48*2 144 OPTPDD-1509-50H-I/M 1500*900*50 60*36*2 135 OPTPDD-1512-50H-I/M 1500*2200*50 60*48*2 180 OPTPDD-1806-50H-I/M 1800*600*50 72*24*2 108 OPTPDD-1809-50H-I/M 1800*900*50 72*36*2 162 OPTPDD-1812-50H-I/M 1800*900*50 72*48*2 216
.jpg)
Structure Metric Imperial Honeycomb core 0.25 mm 1 in Core internal size 2.9 cm² 0.4 in² Core internalmodulus20000 kgf/cm² 275000 psi Surface accuracy ±0.1 mm 600*600 mm ±0.004 in 2*2 ft Upper surface cover 5.0 mm thickness430 series stainless steel0.2 in thickness430 series stainless steelLower surface cover 5 mm armor plate 0.2 in armor plate Side panels 2.5 mm steel plate combination highdamping compositetimber0.1 in steel plate combination highdamping compositetimberMounting holes M6 - 1.0 mm 1/4-20 in Mounting holepattern25 mm grid 1 in grid Mounting holeborders37.5 mm 1.5 in Mounting holesealing25 mm cylindrical cup(Corrosion-resistant nylonmaterial)1 in cylindrical cup(Corrosion-resistant nylonmaterial)Damping Broadband damping
OPTPDD 100 series Length × Width × Height
Weight
kgmm in OPTPDD-0504-100H-I/M 500*400*100 20*26*4 24 OPTPDD-0505-100H-I/M 500*1000*100 20*20*4 30 OPTPDD-0605-100H-I/M 600*1000*100 24*20*4 36 OPTPDD-0606-100H-I/M 600*600*100 24*24*4 43 OPTPDD-0707-100H-I/M 700*700*100 28*28*4 60 OPTPDD-0808-100H-I/M 800*800*100 32*32*4 77 OPTPDD-0906-100H-I/M 900*600*100 36*24*4 65 OPTPDD-0975-100H-I/M 900*750*100 36*30*4 81 OPTPDD-0909-100H-I/M 900*900*100 36*36*4 97 OPTPDD-1006-100H-I/M 1000*600*100 40*24*4 72 OPTPDD-1075-100H-I/M 1000*750*100 40*30*4 84 OPTPDD-1010-100H-I/M 1000*2000*100 40*40*4 121 OPTPDD-1206-100H-I/M 1200*600*100 48*24*4 86 OPTPDD-1290-100H-I/M 1200*900*100 48*36*4 130 OPTPDD-1212-100H-I/M 1200*2200*100 48*48*4 172 OPTPDD-1509-100H-I/M 1500*900*100 60*36*4 162 OPTPDD-1512-100H-I/M 1500*2200*100 60*48*4 216 OPTPDD-1806-100H-I/M 1800*600*100 72*24*4 130 OPTPDD-1809-100H-I/M 1800*900*100 72*36*4 194 OPTPDD-1812-100H-I/M 1800*900*100 72*48*4 260 OPTPDD-2010-100H-I/M 2000*1000*100 80*36*4 216 OPTPDD-2012-100H-I/M 2000*1200*100 80*48*4 288 OPTPDD-2409-100H-I/M 2400*900*100 96*36 260 OPTPDD-2412-100H-I/M 2400*1200*100 96*48 346 OPTPDD 200 series Length × Width × Height
Weight
kgmm in OPTPDD-1010M/E-200H 1000*1000*200 40*40*8 139 OPTPDD-1212M/E-200H 1200*1200*200 48*48*8 201 OPTPDD-1575M/E-200H 1500*750*200 60*30*8 157 OPTPDD-1509M/E-200H 1500*900*200 60*36*8 188 OPTPDD-1510M/E-200H 1500*1000*200 60*40*8 209 OPTPDD-1512M/E-200H 1500*1200*200 60*48*8 251 OPTPDD-1515M/E-200H 1500*1500*200 60*60*8 313 OPTPDD-1807M/E-200H 1800*700*200 72*28*8 175 OPTPDD-1875M/E-200H 1800*750*200 72*30*8 188 OPTPDD-2009M/E-200H 2000*900*200 80*36*8 251 OPTPDD-2010M/E-200H 2000*1000*200 80*40*8 278 OPTPDD-2012M/E-200H 2000*1200*200 80*48*8 334 OPTPDD-2015M/E-200H 2000*1500*200 80*72*8 417 OPTPDD-2409M/E-200H 2400*900*200 96*36*8 301 OPTPDD-2410M/E-200H 2400*1000*200 96*40*8 334 OPTPDD-2412M/E-200H 2400*1200*200 96*48*8 401 OPTPDD-2415M/E-200H 2400*1500*200 96*72*8 501 OPTPDD-2508M/E-200H 2500*800*200 100*32*8 278 OPTPDD-3009M/E-200H 3000*900*200 120*36*8 376 OPTPDD-3010M/E-200H 3000*1000*200 120*40*8 417 OPTPDD-3012M/E-200H 3000*1200*200 120*48*8 501 OPTPDD-3015M/E-200H 3000*1500*200 120*60*8 626 OPTPDD-3612M/E-200H 3600*1200*200 144*48*8 601 OPTPDD-3615M/E-200H 3600*1500*200 144*60*8 751

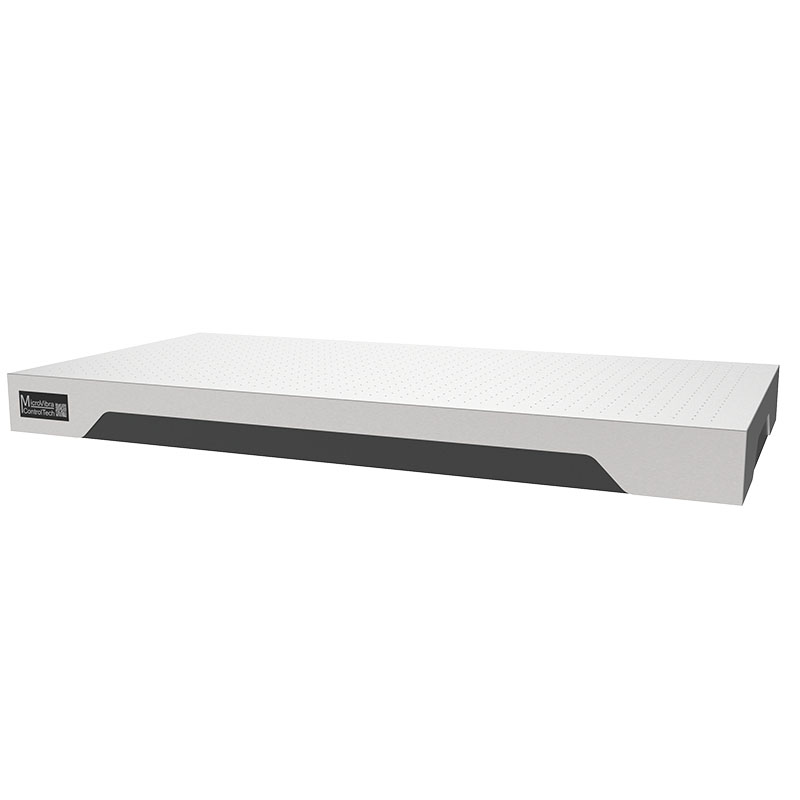

300/400series
.jpg)
OPTPDD 300 series Length × Width × Height
Weight
kgmm in OPTPDD-1010M/E-300H 1000*1000*300 40*40*12 165 OPTPDD-1212M/E-300H 1200*1200*300 48*48*12 238 OPTPDD-1575M/E-300H 1500*750*300 60*30*12 186 OPTPDD-1509M/E-300H 1500*900*300 60*36*12 223 OPTPDD-1510M/E-300H 1500*1000*300 60*40*12 248 OPTPDD-1512M/E-300H 1500*1200*300 60*48*12 297 OPTPDD-1515M/E-300H 1500*1500*300 60*60*12 372 OPTPDD-1807M/E-300H 1800*700*300 72*28*12 223 OPTPDD-1875M/E-300H 1800*750*300 72*30*12 268 OPTPDD-2009M/E-300H 2000*900*300 80*36*12 297 OPTPDD-2010M/E-300H 2000*1000*300 80*40*12 330 OPTPDD-2012M/E-300H 2000*1200*300 80*48*12 396 OPTPDD-2015M/E-300H 2000*1500*300 80*72*12 495 OPTPDD-2409M/E-300H 2400*900*300 96*36*12 357 OPTPDD-2410M/E-300H 2400*1000*300 96*40*12 396 OPTPDD-2412M/E-300H 2400*1200*300 96*48*12 476 OPTPDD-2415M/E-300H 2400*1500*300 96*72*12 594 OPTPDD-2508M/E-300H 2500*800*300 100*32*12 620 OPTPDD-3009M/E-300H 3000*900*300 120*36*12 446 OPTPDD-3010M/E-300H 3000*1000*300 120*40*12 495 OPTPDD-3012M/E-300H 3000*1200*300 120*48*12 594 OPTPDD-3015M/E-300H 3000*1500*300 120*60*12 743 OPTPDD-3612M/E-300H 3600*1200*300 144*48*12 713 OPTPDD-3615M/E-300H 3600*1500*300 144*60*12 891
OPTPDD 400 series Length × Width × Height
Weight
kgmm in OPTPDD-1812M/E-400H 1800*1200*400 72*48*16 471 OPTPDD-1815M/E-400H 1800*1500*400 72*60*16 589 OPTPDD-2010M/E-400H 2000*1000*400 80*40*16 436 OPTPDD-2012M/E-400H 2000*1200*400 80*48*16 524 OPTPDD-2015M/E-400H 2000*1500*400 80*60*16 654 OPTPDD-2409M/E-400H 2400*900*400 96*36*16 471 OPTPDD-2410M/E-400H 2400*1000*400 96*40*16 524 OPTPDD-2412M/E-400H 2400*1200*400 96*48*16 628 OPTPDD-2415M/E-400H 2400*1500*400 96*60*16 785 OPTPDD-3009M/E-400H 3000*900*400 120*36*16 589 OPTPDD-3010M/E-400H 3000*1000*400 120*40*16 654 OPTPDD-3012M/E-400H 3000*1300*400 120*48*16 785 OPTPDD-3015M/E-400H 3000*1500*400 120*60*16 981 OPTPDD-3612M/E-400H 3600*1200*400 144*48*16 942 OPTPDD-3615M/E-400H 3600*1500*400 144*60*16 1178
