S.T.C. Rubber Isolator

S.T.C. Rubber Isolator Overview -

DESCRIPTION

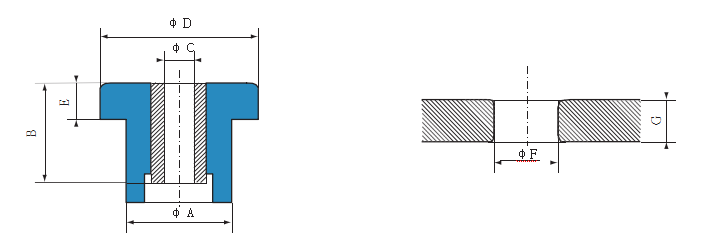

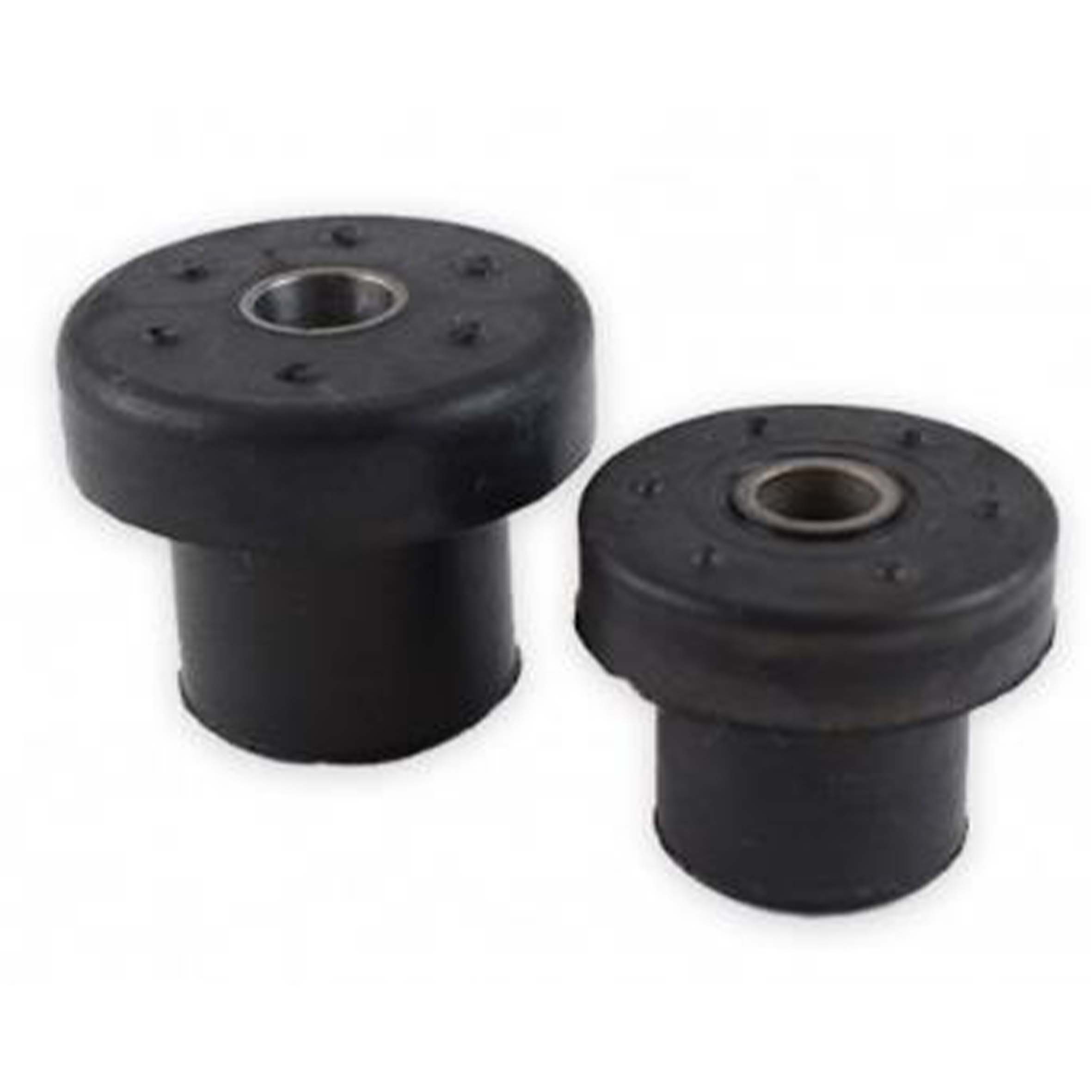

The S.T.C. mount comprises a rubber ring bonded to a central tube.
Inner tube : mild steel.

Bonded rubber in the form of a ring at the top with a collar below which is used for fixing

Application scenarios:

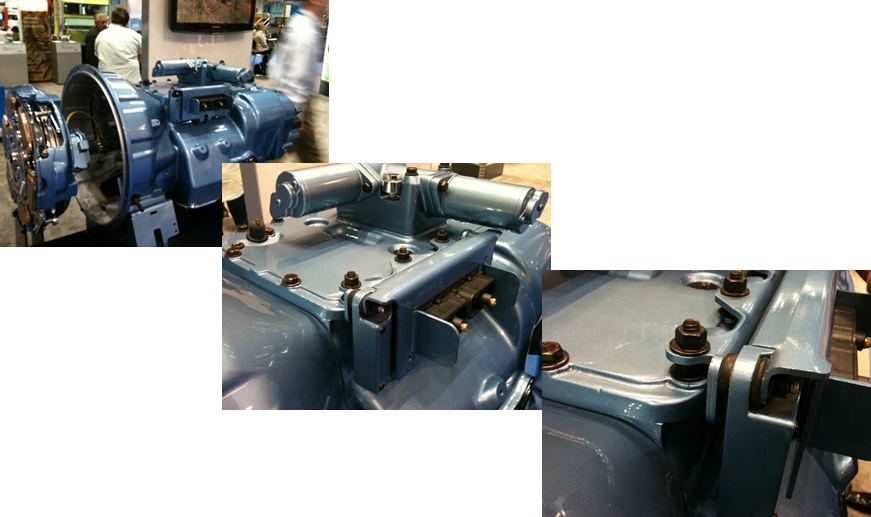

(1) Vibration isolation for the transmission system control unit

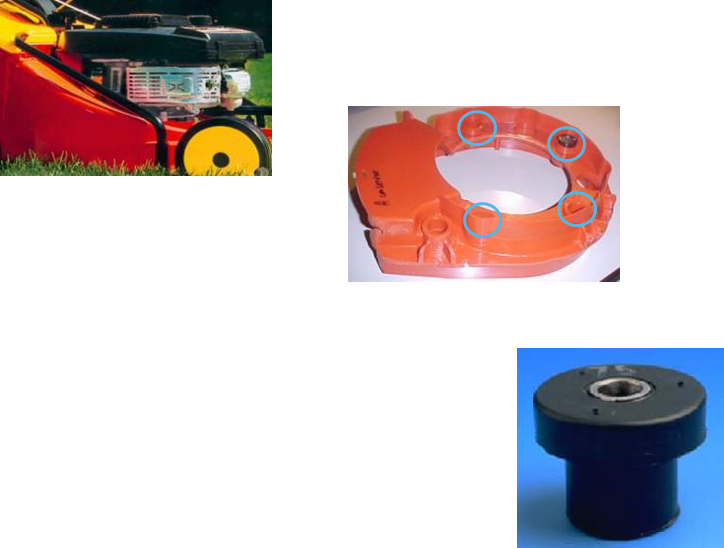

(2) Vibration isolation for the lawn mower power unit

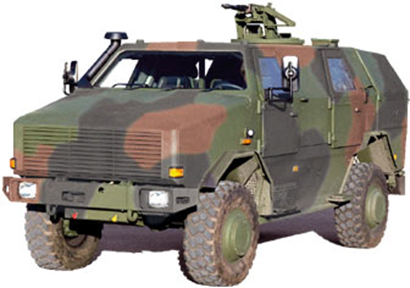

(3) Vibration isolation for armored vehicle windshields
S.T.C. Rubber Isolator Advantage +

OPERATION
The design of the S.T.C. mount gives the following basic characteristics :

1.the rubber works in compression;

2. anti-rebound;

3.can be used as safety mounting.

Advantages

1. Simple to fix.

2.Simple and economical.

3. Extensive range of loads.

S.T.C. Rubber Isolator Performance +

S.T.C. Rubber Isolator Specifications +
