Straflex Coupling

Straflex Coupling Overview -

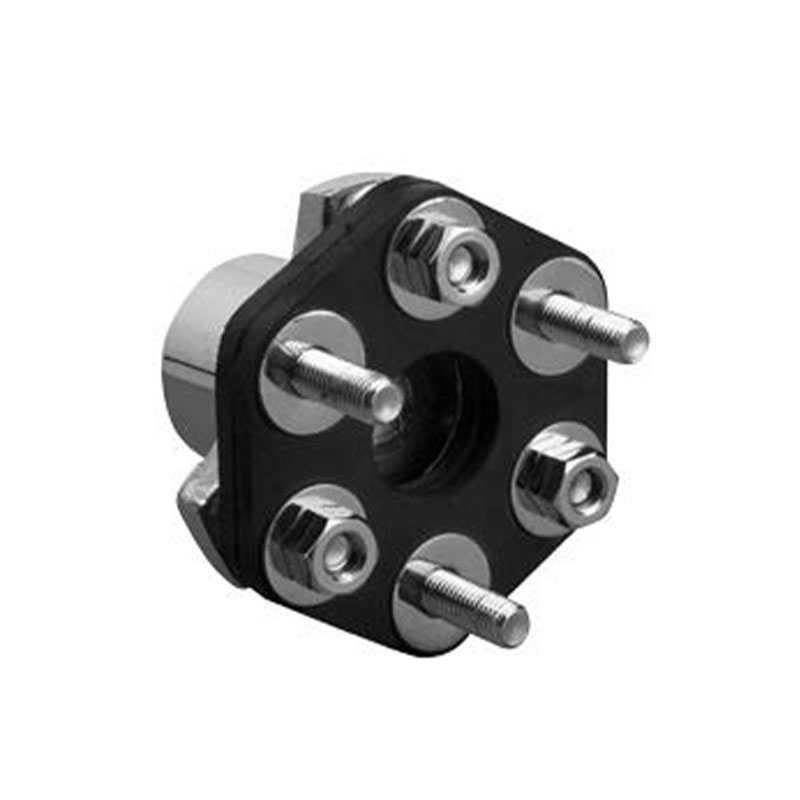

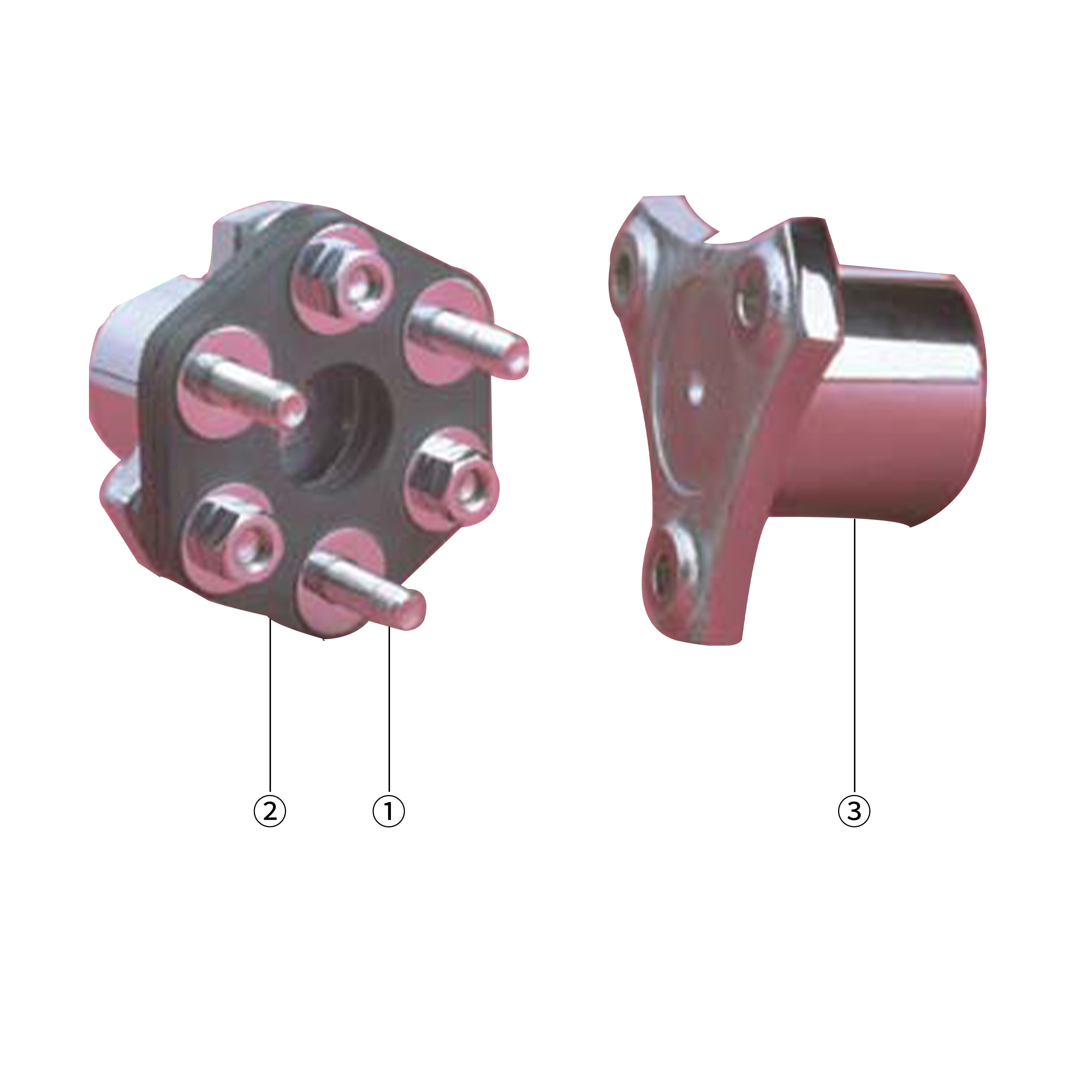

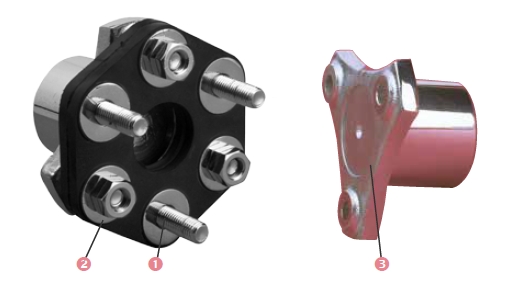

Flexible element
1. Metallic bobbins linked together by rayon fibres.

2. The whole unit 1.is potted in natural rubber and is hexagonal.

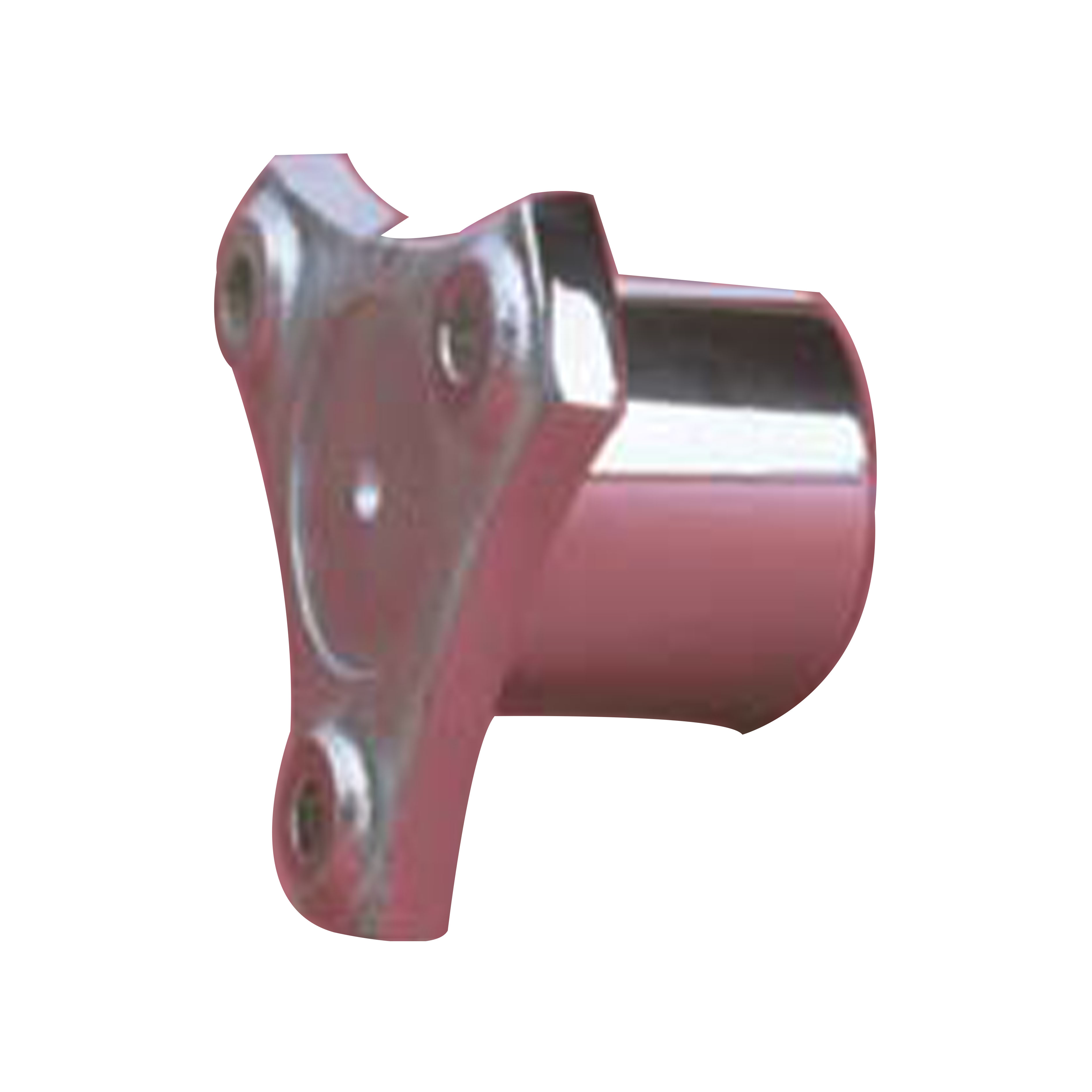

Flange

3. forged steel.
Straflex Coupling Advantage +

The STRAFLEX® coupling is designed with the following features :
➤ radial disassembly wihout moving the machines that are coupled;

➤reduced size;

➤used at relatively high rotational speeds

Recommendation

➤The reinforced textile structure means that it has a low tolerance to irregularities in the torque.
Straflex Coupling Performance +

Straflex Coupling Specifications +

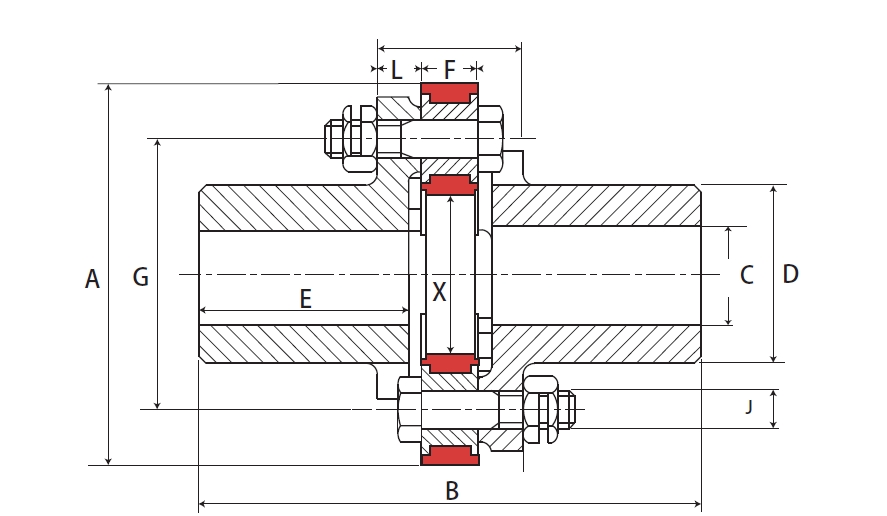

弹性联轴器-Straflex(图1)

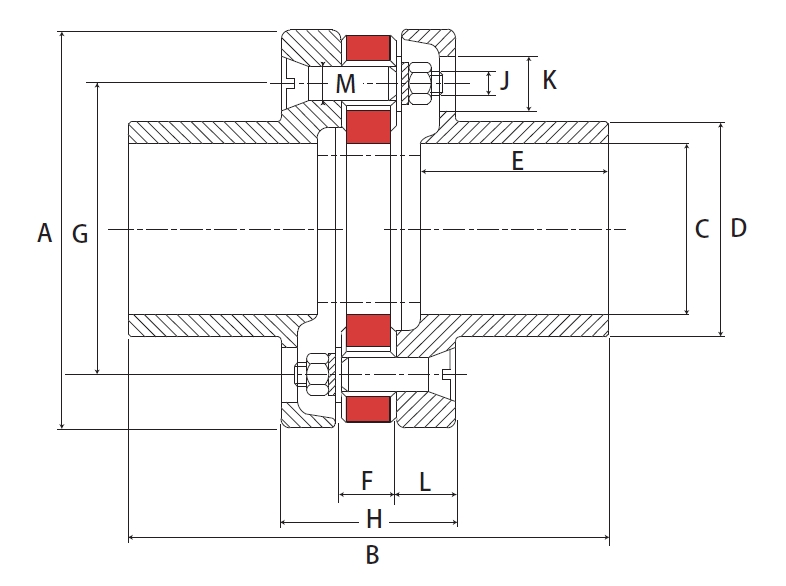

弹性联轴器-Straflex(图2)

Nominal torque N.m	Max torque N.m	Max speed rpm	Hole size C mm		A mm	B mm	D mm	E mm	Reference	F mm	G mm	H mm	J mm	K mm	L mm	M mm	X mm	Weight g
Nominal torque N.m	Max torque N.m	Max speed rpm	min	max	A mm	B mm	D mm	E mm	Reference	F mm	G mm	H mm	J mm	K mm	L mm	M mm	X mm	Weight g
50	100	6000	-	30	78	80	43	32	635100	12	50	32	-	-	8	7.8	20	1.3
100	200	5500	-	30	94	115	42	40	635301	15	65	37	10	-	11	-	28	1.6
200	400	5000	-	40	120	158	56	66	635302	18	85	46	12	-	14	-	40	3
400	800	4500	-	48	140	171	68	70	635303	21	100	55	14	-	17	-	44	5.5
800	1600	3500	-	60	178	222	90	93	635304	26	132	68	16	-	21	-	66	12
1600	3200	2800	-	100	232	280	126	110	635305	32	170	102	14	32	35	20	86	36
3200	6400	2400	-	110	268	340	142	123	635306	42	190	130	16	37	44	24	94	50
6000	12000	2000	-	145	330	424	184	160	635307	48	240	136	16	37	44	24	120	97
