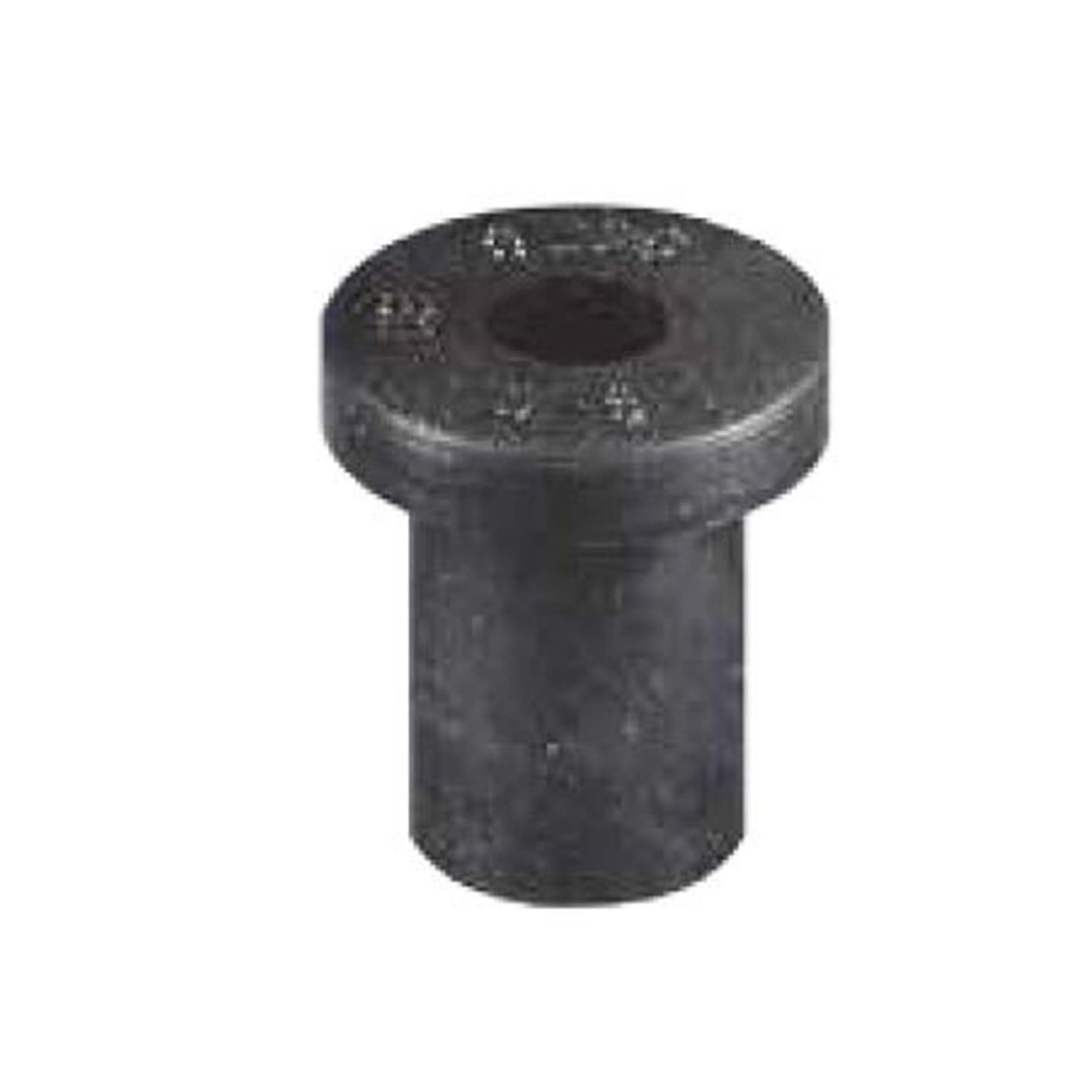

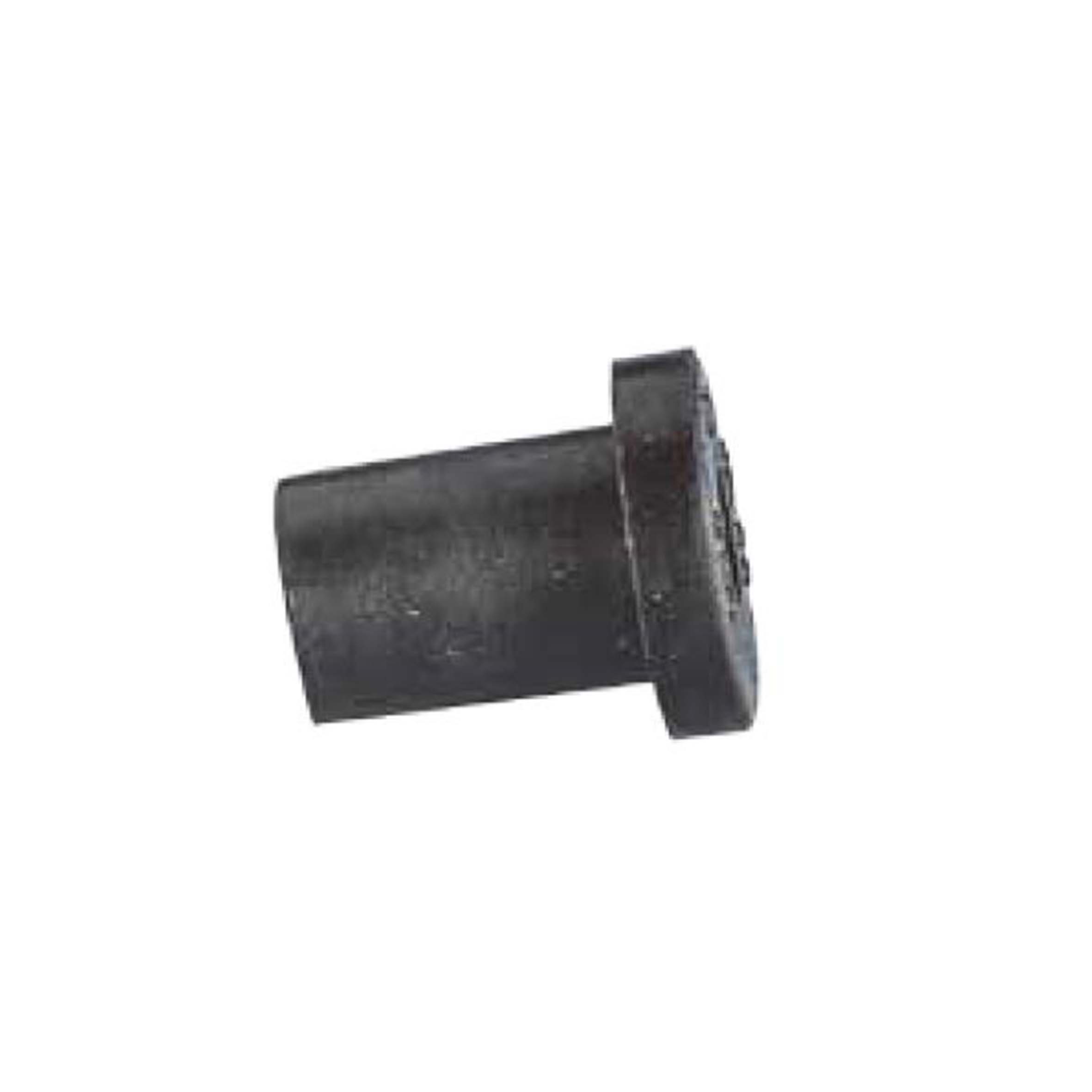

FLEX-LOC

FLEX-LOC Overview -

APPLICATIONS
FLEX-LOC are suitable for the fixing of sheets, frameworks, engines, ventilators, electronic equipment, computers, etc.

They have, moreover, a function of insulation against the structure borne noises, unlike other fasteners
FLEX-LOC Advantage +

Advantages
80% reduction at 150 Hz of vibrational energy transmitted from normal structural frequencies.

➤Simple and economical.

➤ Simple to fix.

➤ Light weight.
FLEX-LOC Performance +

OPERATION
The design of the FLEX-LOC mount gives the following basic characteristics :

➤ the rubber works in :

- compression (axial);

- shear (radial);

➤compression/shear according to the fixing method.

FLEX-LOC Specifications +

DIMENSIONS
橡胶减震器 FLEX-LOC(图1)

橡胶减震器 FLEX-LOC(图1)

Paulstra reference	Barry Controls* reference	Nut	cp A (mm)	cp B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
Paulstra reference	Barry Controls* reference	Nut	cp A (mm)	cp B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
530909 03	Q3	M3	9	7,2	3,4	9	2,5	8
530909 04	Q4	M4	12	9,3	4,4	11,5	3	10,5
530909 05	Q5	M5	15	10,2	5,4	14,5	3,5	13
530909 06	Q6	M6	18	12,7	6,4	17	4	15
530909 07	Q8	M8	24	16,5	8,4	22	5	19,5

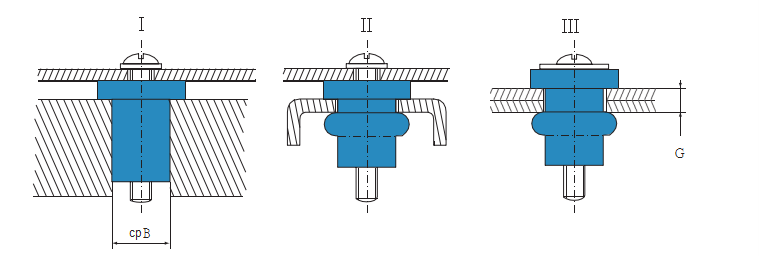

橡胶减震器 FLEX-LOC(图2)

Paulstra reference	Barry Controls* reference	Clearance hole Ø B (mm)	Plate thickness G (mm)	Torque range		Static load (daN) (daN)
				Torque range		Static load (daN) (daN)
				1 (Nm)	2 or 3 (Nm)	1	2 or 3
						1	2 or 3
						Compression / shear	Compression	Shear
530909 03	Q3	7,2-7,5	0,6-2,5	0,5	0,4	1	5	2,5
530909 04	Q4	9,3-9,6	0,8-3,3	0,6	0,5	1	7	3,5
530909 05	Q5	10,2-10,5	0,8-4,3	1,0	0,6	1,5	10	5
530909 06	Q6	12,7-13,0	1,5-5,0	3,5	0,9	3	14	7
530909 07	Q8	16,5-16,8	1,5-6,5	4,0	1,8	5	28	14
