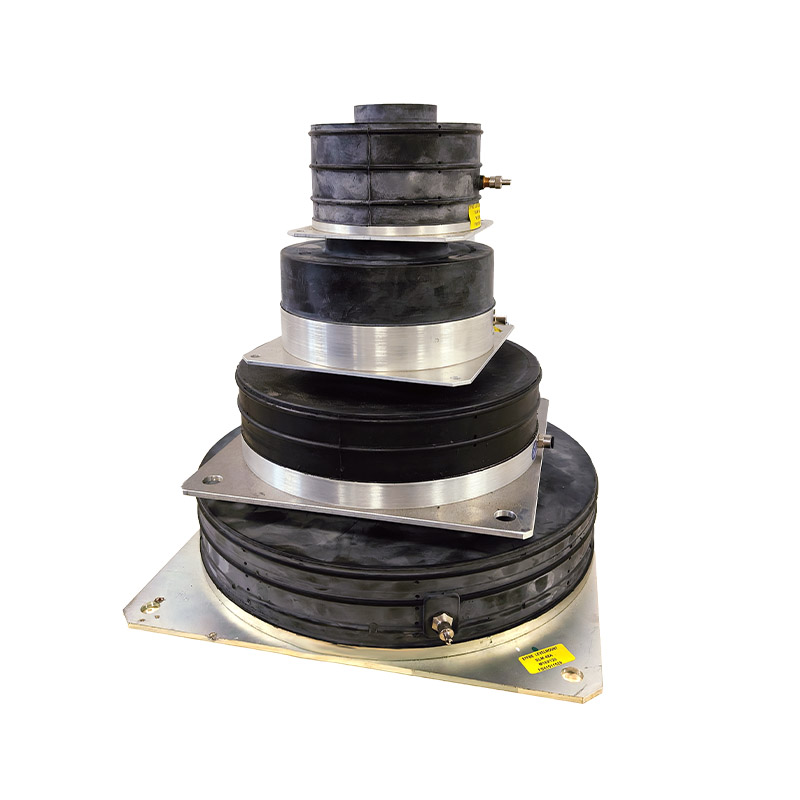

SLM-A/B Air Spring Isolator

SLM-A/B Air Spring Isolator Overview -

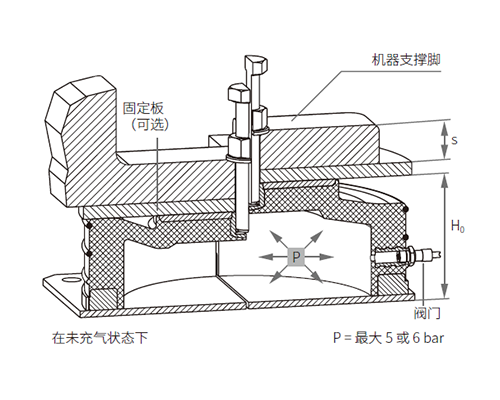

Structure:
Elastomer-metal combination with screwable

base plate, gas chamber made of elastomeric

material, reinforced with steel rings, 10 sizes.

Applicable Fields:

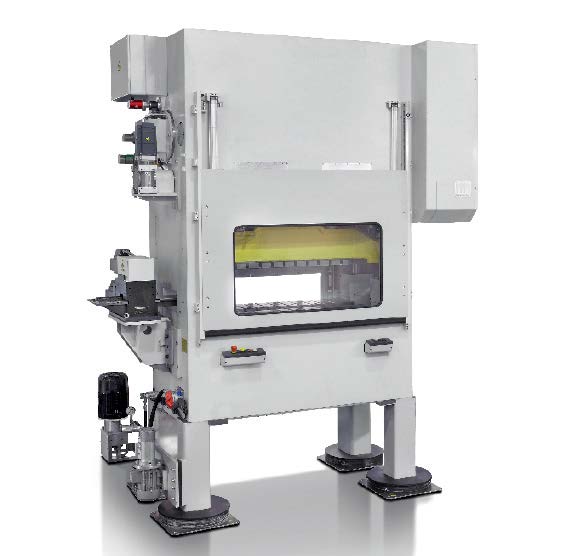

Measuring machines, flat workbenches,

equipment foundations, presses, automatic

shearing machines, occlusion machines,

compressors, fans, air conditioners, etc
SLM-A/B Air Spring Isolator Advantage +

Performance:

➤Low-frequency active or passive damping

➤The vertical and horizontal stiffness is

about 1:1

➤ Vibration isolation

➤ Impact absorption

➤Structural soundproofing

➤ No anchoring is required

➤ It can be operated without inflation

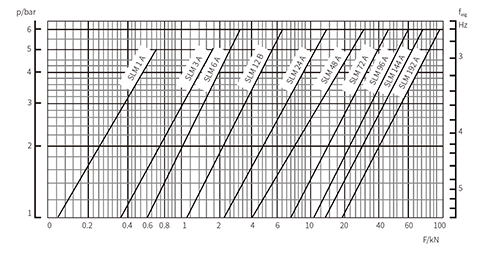

➤Load range: 0.2 – 100 kN

➤ Natural frequency (static) 3 – 5 Hz

➤Natural frequency (static) is not inflated at 8 Hz
SLM-A/B Air Spring Isolator Performance +

Materials
➤ High-elasticity neoprene main body, oil-resistant and aging-resistant
➤ Load plate and base plate:
- SLM 1 ‒ 12: aluminum plate
- SLM 24 ‒ 192: galvanized steel plate
➤ Grade 8.8 galvanized bolts

Leveling range: leveling range ± 5 - 6 mm, air pressure control

Optional Accessories
Automatic Leveling Control:
➤ Mechanical-Pneumatic Version
➤ Electric-Pneumatic Version
(Can set reset time and accuracy)

Automatic pressure monitoring reduces maintenance: works with SLM H90 IC control system

Scope of Delivery: Air spring with hex head bolts

Accessories: Mounting Plate
When the area at the bottom of the machine is small, the mounting plate distributes the load evenly across the entire component area

SLM-A/B Air Spring Isolator Specifications +

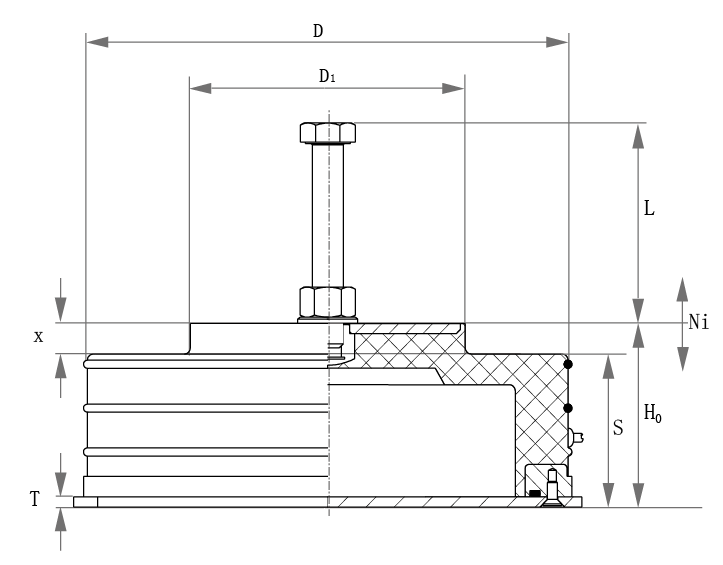

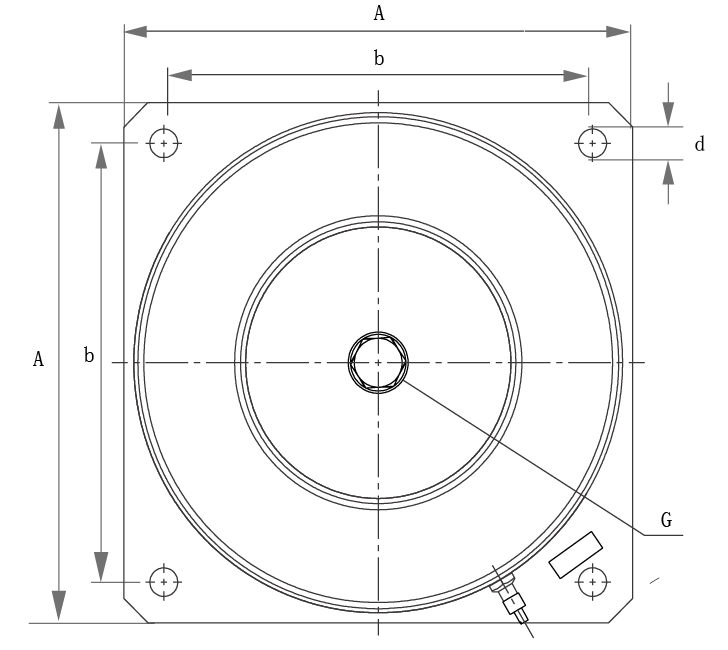

SLM Series	Diameter D	Installation height H0	Base size D1	The support surface fixes the size of the threaded hole G	Overall length L	Machine base thickness (max.) S	Lifting range of height Ni	Height of support surface X	Width of base plate A	Base hole spacing b	Base fixing hole size d	Base plate thickness T	Weiight kg	Maximum load kN
SLM 1 A	73	65	28	M10	80	50	±5	12	75	60	7	3	0.3	0.65
SLM 3 A	105	65	52	M12	90	65	±5	12	105	89	7	3	0.5	1.8
SLM 6 A	127	90	60	M12	90	65	±6	15	130	108	7	3	1	2.8
SLM 12 B	172	90	96	M12	90	65	±6	15	175	153	7	3	2.2	6
SLM 24 A	245	90	138	M16	100	75	±6	15	255	215	14	5	7.2	13
SLM 48 A	338	90	205	M16	100	75	±6	15	343	305	14	5	14.7	26
SLM 72 A	380	91	255	M24 x 1.5	140	75	±6	17	385	310	20	6	22.5	38
SLM 96 A	468	90	300	M24	130	75	±6	15	470	406	20	6	29.3	55
SLM 144 A	550	91	360	M24 x 1.5	140	75	±6	17	555	480	20	6	46.5	76
SLM 192 A	610	90	430	M24	130	75	±6	15	610	508	20	6	52.5	100

Unit: mm

L = bolt length
