MINIFLEX Coupling Isolator

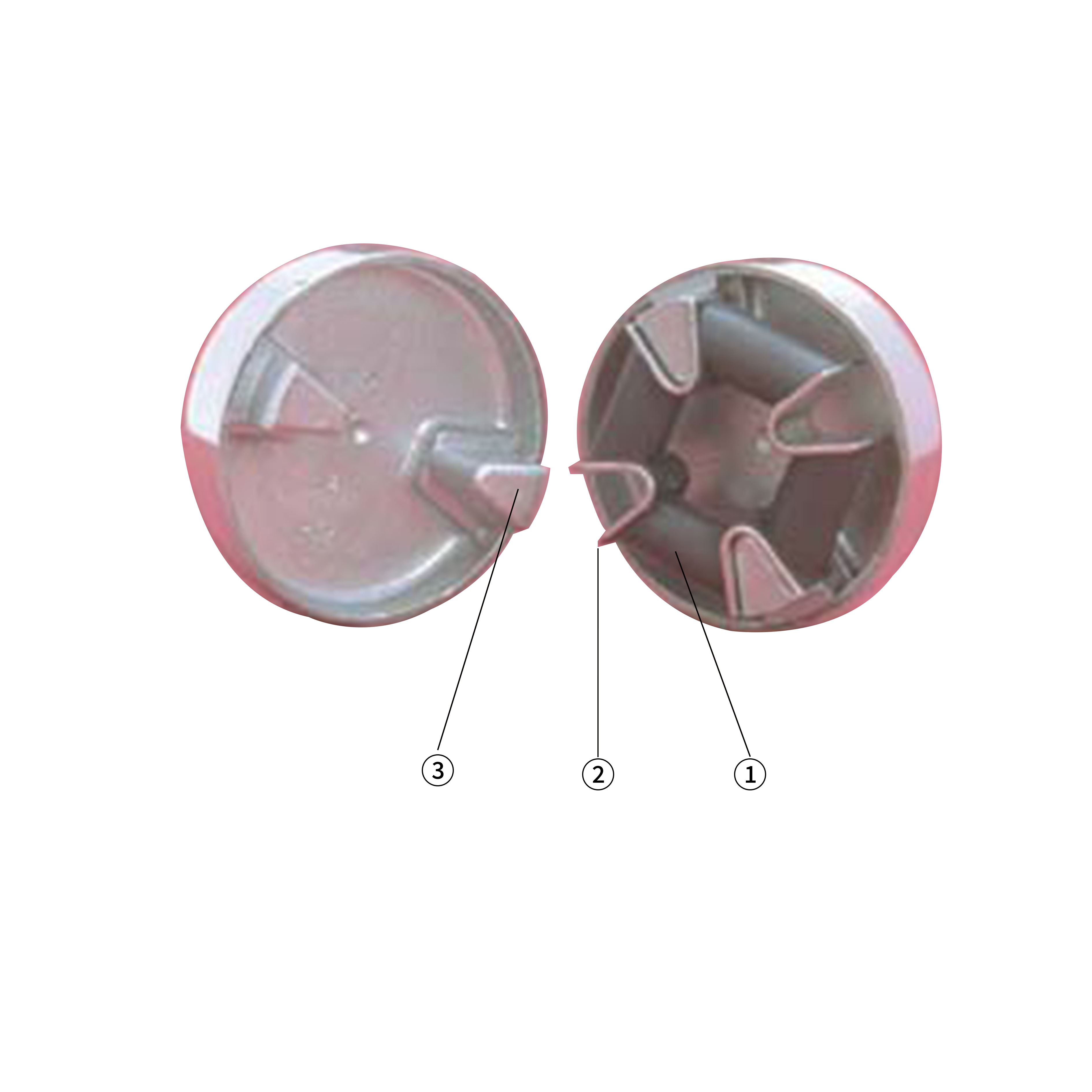

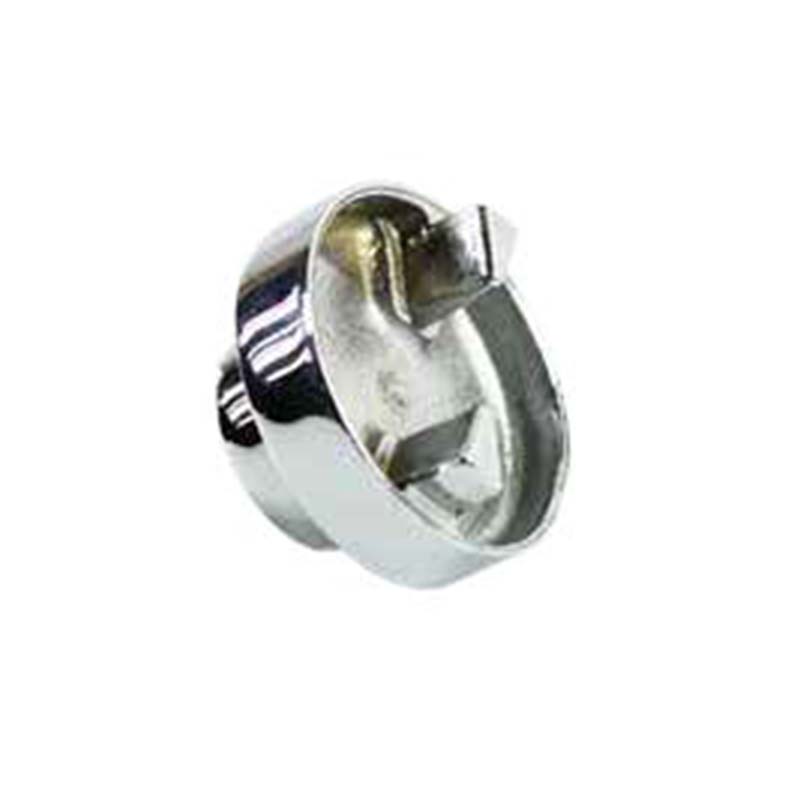

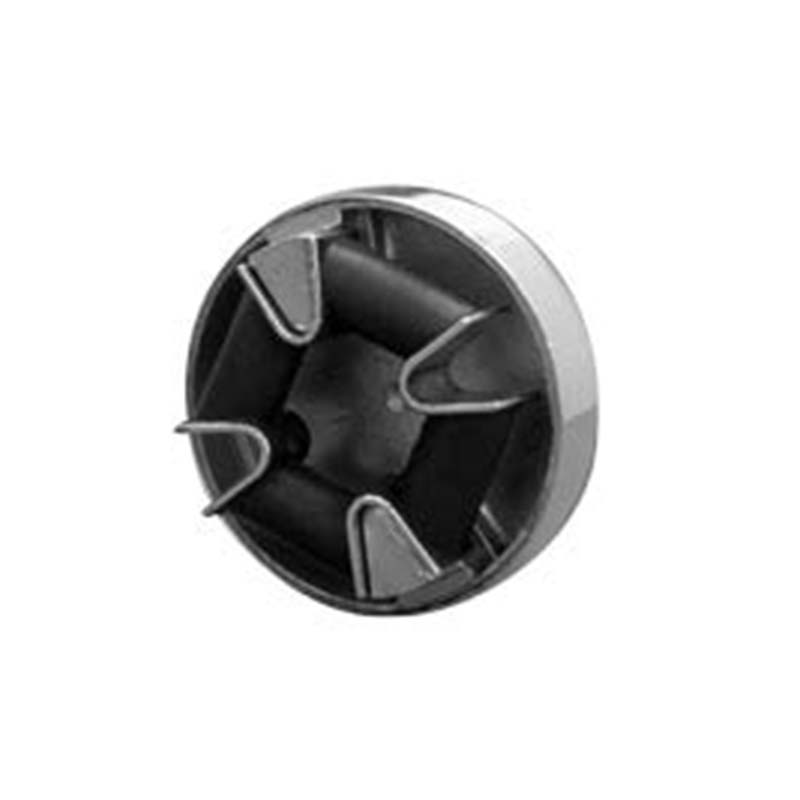

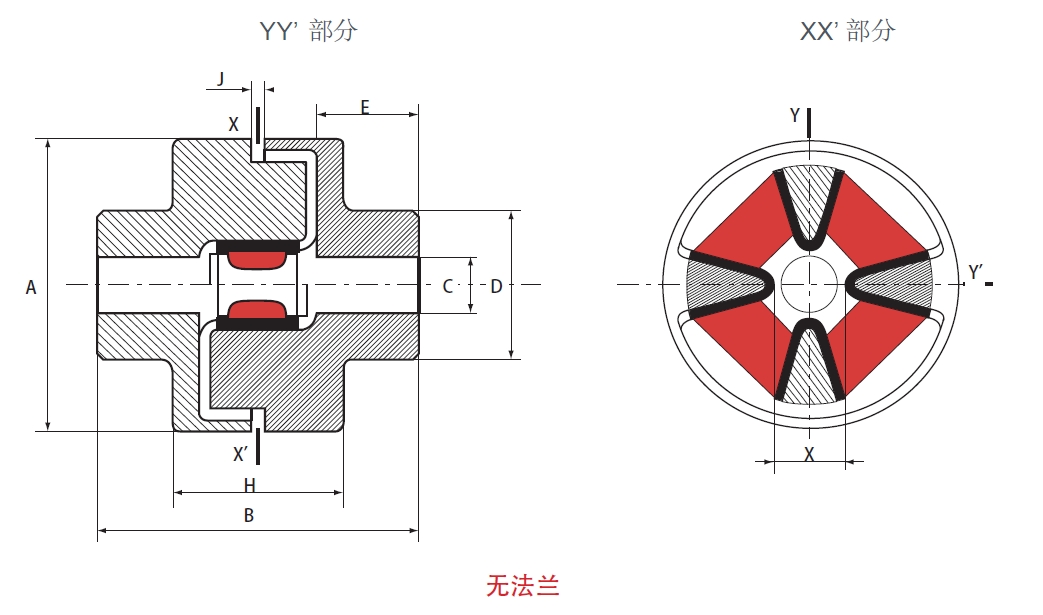

	Nominal torque N.m	Max torque N.m	Max speed rpm	Max hole mm	A mm	B mm	D mm	E mm	Ref.	H mm	J mm	X mm	Weight kg
Aluminium Flanges	2.5 10 20	5 20 40	10000 9000 7000	14 19 28	45 58 80	41 61 88	28 36 48	14 20 30	633040 633010 633020	21 31 40	2 2 4	14 16 28	0.10 0.26 0.68
Cast Iron Flanges	2.5 10 20 40 60	5 20 40 80 120	10000 90000 70000 40000 40000	14 28 42 55 55	45 58 84 118 118	41 61 88 116 120	28 42 63 82 82	14 20 30 40 40	633041 633039 633038 633044 633047	21 31 40 51 55	2 2 4 6 10	14 16 28 38 38	0.25 0.6 1.8 4.5 4.5

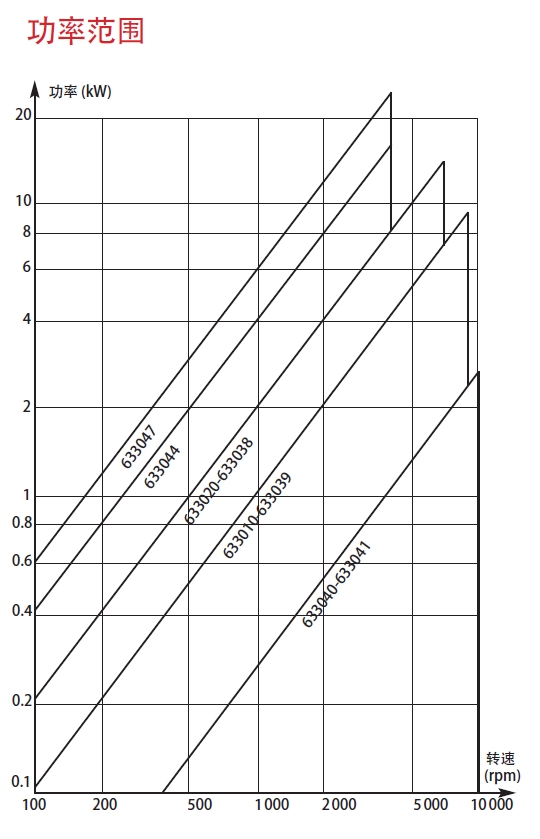

OPERATING CHARACTERISTICS

RADIAL MISALIGNMENT

Nominal torque N.m	Radial misalignment 1500 rmp
2.5 10 20 40 60	0.15 mm 0.25 mm 0.50 mm 1.00 mm 1.00 mm

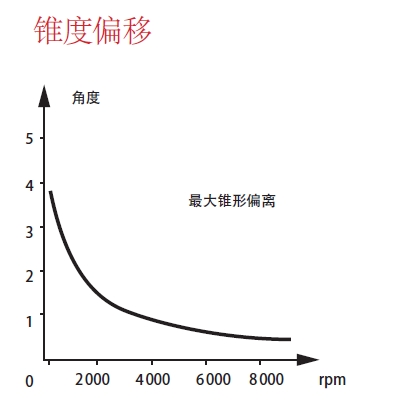

Operating parameters

Nominal torque N.m	Vibrat. coupling N.m	Torsion under NT (degrees)	Stiffness
Nominal torque N.m	Vibrat. coupling N.m	Torsion under NT (degrees)	Axia daN/mm	Radial daN/mm	Torsional daN/mm	Conical daN/mm
2.5 10 20 40 60	1.2 5 10 20 30	28 28 24 18 16	0.30 1.50 1.25 2.0 4.5	2 5 7 8 12	0.004 0.020 0.045 0.126 0.214	0.005 0.090 0.090 0.022 0.034

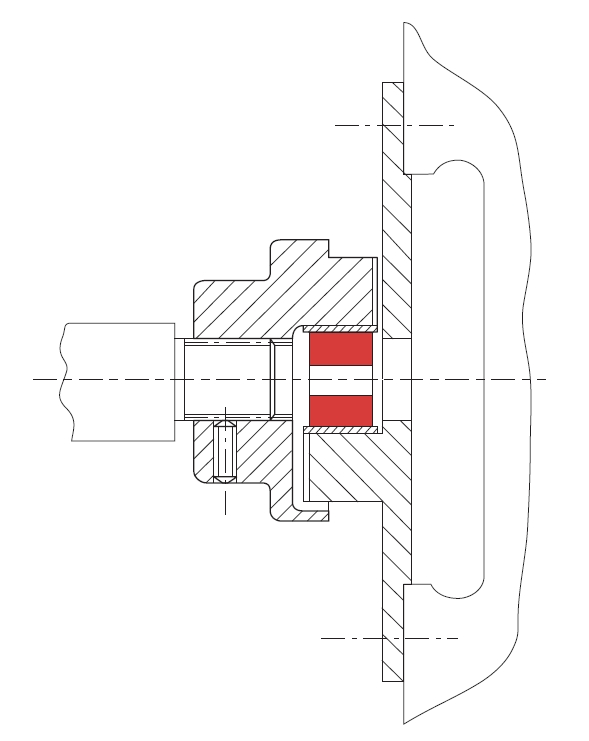

ASSEMBLY

The coupling is assembled and disassembled axially which entails moving one of the machines. This

procedure is not difficult and can be done quickly, as at least one of the machines being coupled is not heavy.

Method :

➤ fit an opposing pair of armatures of the flexible element half-way onto the drive segments of one flange;

➤ position the second flange;

➤ push the two flanges together to engage the armatures of the flexible element;

➤ release.
