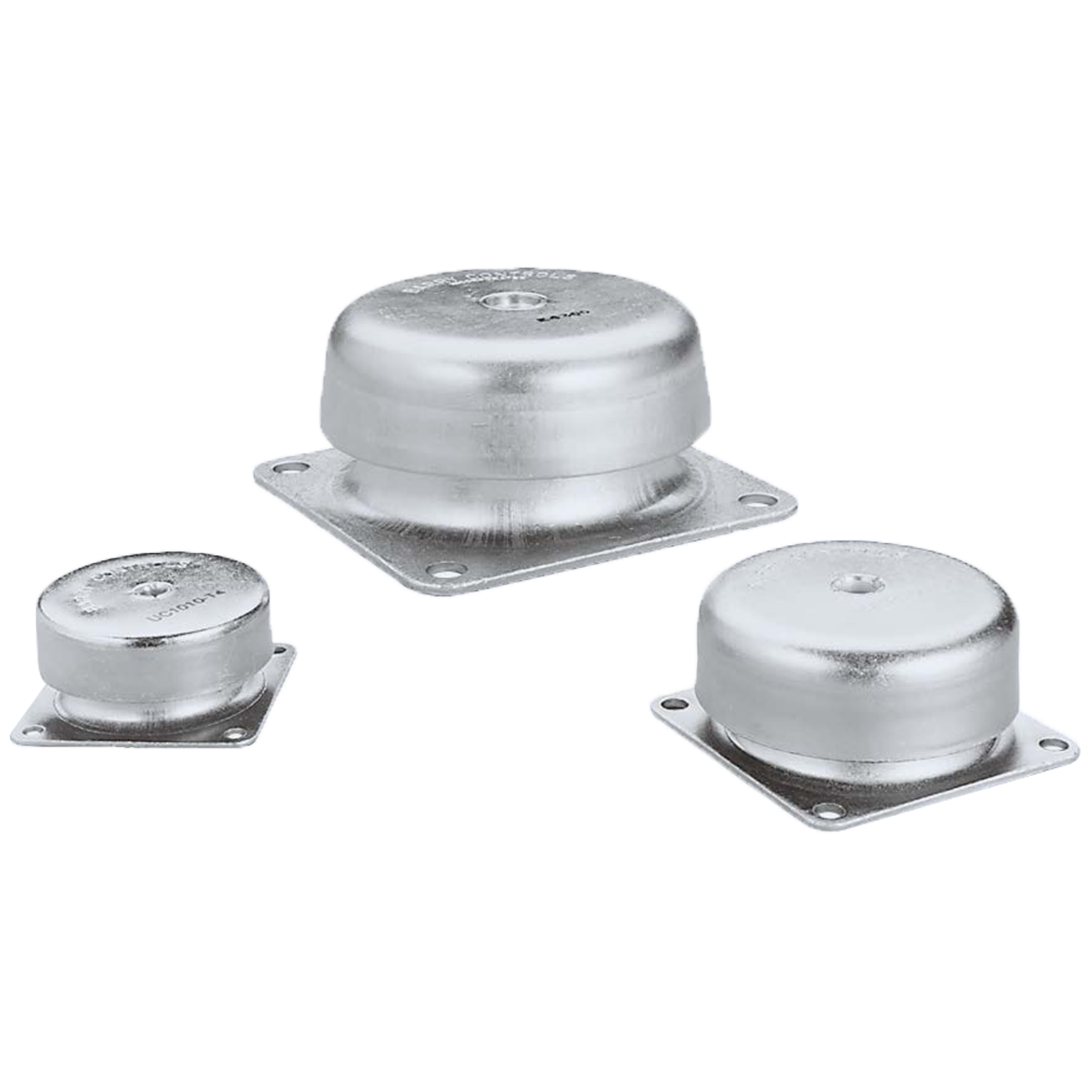

CUPMOUNT Rubber Isolator
-
CUPMOUNT Rubber Isolator Overview -
Natural frequency: 25-35 Hz

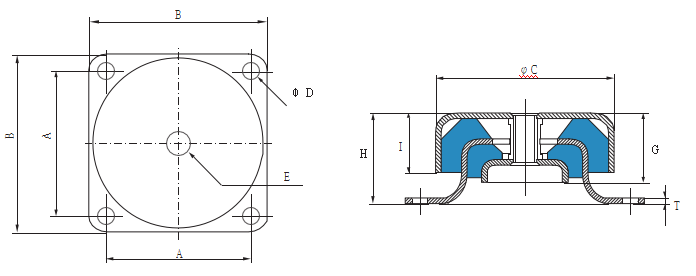

The CUPMOUNT base consists of a rubber ring and two bonded cup-shaped metal bodies, a base support metal plate, and a central shaft.
Central shaft: Zinc-plated low carbon steel with threaded hole.
Support metal plate: Zinc-plated low carbon steel with 4 holes.
Design features: Axial and radial stiffness ratio is 1:1, very stable.
Application areas:
Engines, pumps, air conditioning, ventilation equipment, transformers, etc. -
CUPMOUNT Rubber Isolator Advantage +
-

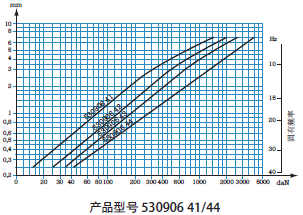

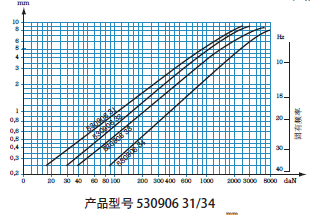

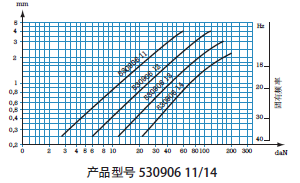

CUPMOUNT Rubber Isolator Performance +
-
CUPMOUNT Rubber Isolator Specifications +
