SLM-IC Air Spring Isolator

SLM-IC Air Spring Isolator Overview -

The SLM-B IC system uses the same controller as the ADS
series, providing automatic pressure monitoring and

additional control parameters.

➤ Natural frequency: 3 ‒ 5 Hz
➤ SLM-IC structure
➤ Rubber-metal combination base plate fixed with bolts.
SLM-IC Air Spring Isolator Advantage +

System Functions
The air spring comes with factory default settings. At the same time, the following parameters can be changed through the control software: reset accuracy, allowable deformation, response time, and average height. These parameters can be viewed, adjusted, and permanently stored in each spring. Even after a power outage, these values are retained. The control software can be used to restore the default settings.
SLM-IC Air Spring Isolator Performance +

IC Air Spring System Composition:

➤4 supporting points

- 3 pneumatic springs SLM type Master with

sensors and control valves

- 1 pneumatic spring SLM type Slave without

sensors and valves

➤1 control unit, 3-channel circuit board with USB interface
➤ Communication cable for the main control spring

➤Pressure Regulating Valve (NW 4 Module)

➤Power adapter

Supply Requirements
➤ Compressed Air:
- Operating pressure 1 ‒ 6 bar, dry, dust-free, oil-free
- Optional filter regulator (FRK)
➤ Control Module:
- Circuit board dimensions: 160 x 100 x 15 mm
- Control module housing dimensions: 225 x 200 x 40 mm
➤ Power Supply:
- DC power: 24 V ‒ 1A
- AC power adapter: 230 V, 50 Hz, 130 W, output 24 V, 1A, DC
➤ PC Interface: USB to RS-232
➤ Air Level Control software

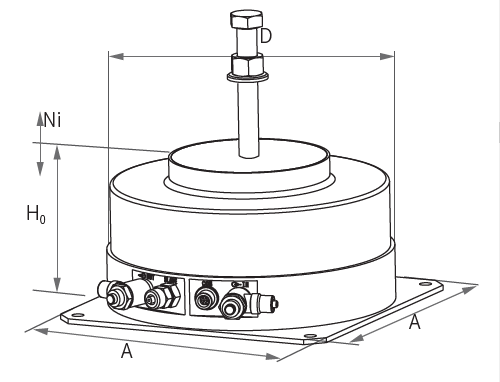

SLM-IC series	D	H0	Ni	A	Maximun load kN
SLM-IC series	D	H0	Ni	A	Maximun load kN
SLM-IC-3	105	65	± 5	106	1.8
SLM-IC-6	127	90	± 6	130	2.8
SLM-IC-12	175	90	± 6	175	6
SLM-IC-12 B	170	90	± 6	175	6
SLM-IC-24	245	90	± 6	255	13
SLM-IC-48	338	90	± 6	343	26
SLM-IC-96	468	90	± 6	470	55
SLM-IC-192	610	90	± 6	610	100
