STABIFLEX Mount

STABIFLEX Mount Overview -

The STABIFLEX mount comprises a conical rubber section bonded between inner and outer metal parts.

Steal Centre axis with threaded hole.
Aluminium Square (four holes) or diamond base (two holes) with clearance hole.

Bonded natural rubber, anti-slip bead.

Cup to protect the rubber and distribute the load.

Application Scenarios:

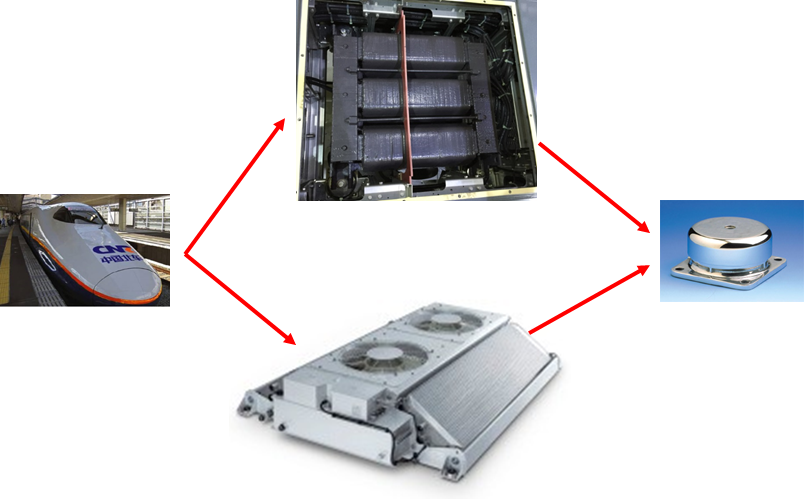

(1) Market: Rail Transit
Applications: Transformer vibration isolation
Air conditioning unit vibration isolation

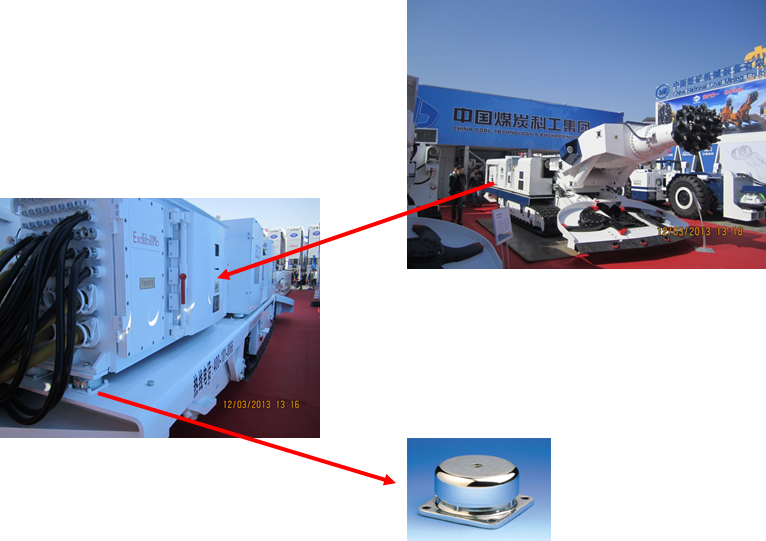

(2) Market: Mining Machinery
Application: Vibration isolation for electric control boxes
STABIFLEX Mount Advantage +

Advantages
➤The machine may be placed with its mounts directly on the ground.

➤Speed of fixing.

➤Easy movement of suspended machinery.

➤Rubber protected against harmful liquids.

➤Extensive range : 3 hardnesses of rubber for five existing types, allowing the mount to be optimised as a function of the load and exciting frequency.

➤ May be used with an anti-rebound washer.

STABIFLEX Mount Performance +

Technical Features:
➤ 5 different size specifications
➤ 14 different load models
➤ Small load 10 kg
➤ Large load 1800 kg
➤ Natural frequency 6-11 Hz
➤ Radial to vertical stiffness ratio (2~3) :1
➤ Material: Natural rubber
➤ Operating temperature: -40℃ ~ 82℃

OPERATION

The design of the STABIFLEX mount gives the following basic characteristics :

➤ axial elasticity two or three times higher than radial elasticity;

➤ the rubber works in shear/compression;

➤ progressive buffer against shocks or accidental overload;

➤ anti-slip (may be placed directly on the ground).

Reference	Nominal static load (daN)	Deflection (mm)	Hardness (Shore A)
Reference	Nominal static load (daN)	Deflection (mm)	Hardness (Shore A)
530603	10 - 42	3,5	45
530603	15 - 60	3	60
530613	20 - 93	3,5	45
530603	30 - 125	4	75
530613	40 - 165	3,5	60
530622	50 - 210	5	45
530613	65 - 260	3	75

Reference	Nominal static load (daN)	Deflection (mm)	Hardness (Shore A)
Reference	Nominal static load (daN)	Deflection (mm)	Hardness (Shore A)
530622	65 - 275	4,5	60
530622	95 - 380	3,5	75
530642	110 - 450	8	45
530642	175 - 700	8	60
530652	250 - 1000	8	45
530652	325 - 1300	8	60
530652	450 - 1800	8	75

Type	Reference	Hardness	cp A (mm)	B (mm)	C	D (mm)	E (mm)	F (mm)	J (mm)	Weight (g)
Type	Reference	Hardness	cp A (mm)	B (mm)	C	D (mm)	E (mm)	F (mm)	J (mm)	Weight (g)
Diamond base	530603	45.60.75	69	41	M12	98	9	114	6	250
Diamond base	530613	45.60.75	84	51	M12	115	11	137	7	450
Square base	530622	45.60.75	100	52	M12	90	11	114	7	1000
	530642	45.6	133	69	M16	114	13	144	9	2300
	530652*	45.60.75	133	69	M16	114	13	144	9	2700
