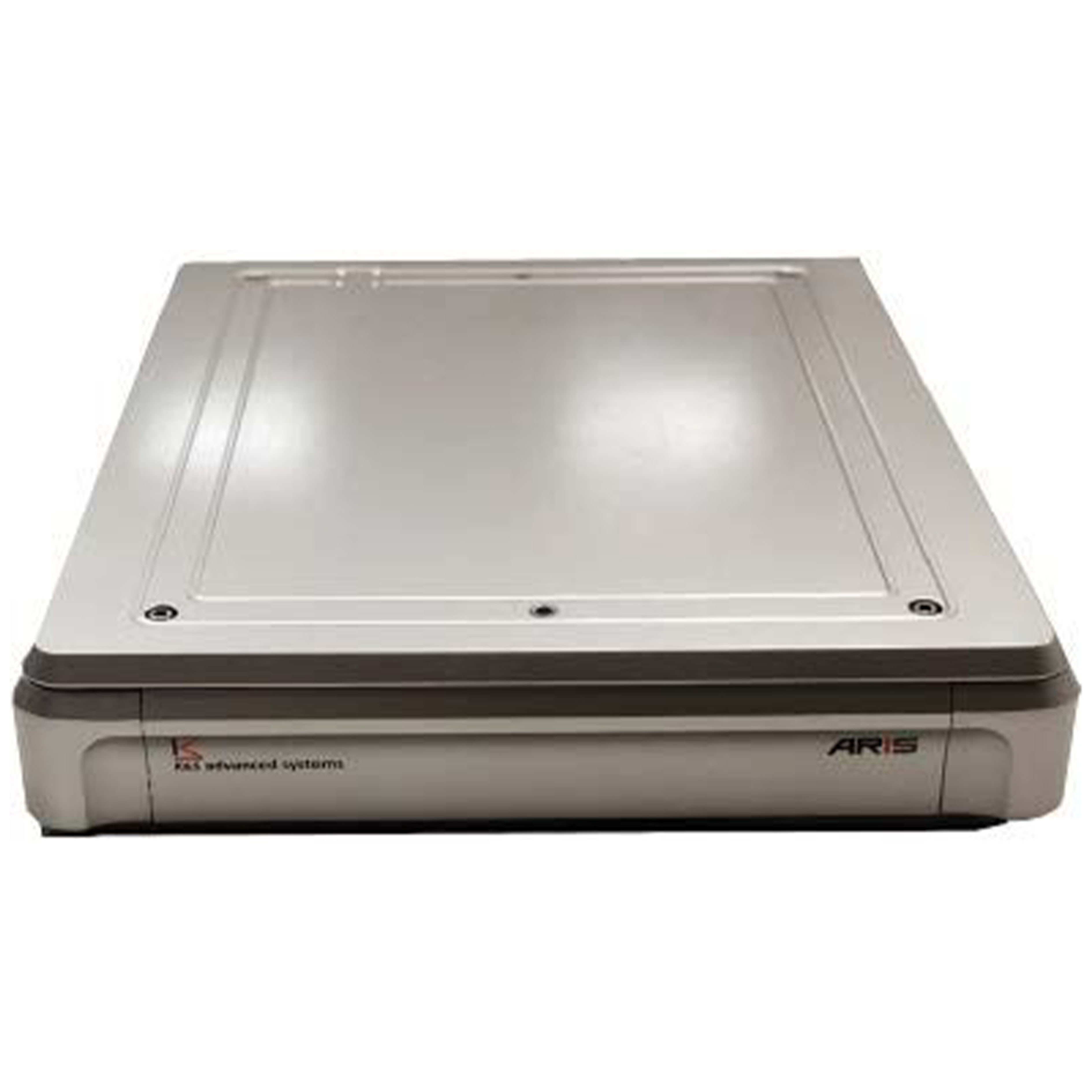

ARIS-TT Desktop Active Vibration Isolator

ARIS-TT Desktop Active Vibration Isolator Overview -

The lightweight and compact desktop active vibration isolator can counteract tiny vibrations affecting sensitive equipment. Its simplified design allows it to be integrated into a workstation environment without the need for further adjustments.
ARIS-TT Desktop Active Vibration Isolator Advantage +

➤ Lightweight and compact, does not take up space
➤ Counters minor vibrations of sensitive equipment
➤ Easy to install and operate
ARIS-TT Desktop Active Vibration Isolator Performance +

➤ 6 degrees of freedom
➤ Active vibration isolation with variable damping from 0.5Hz - 100Hz
➤ Built-in AI functionality
➤ Bandwidth adjustable via software
➤ Built-in real-time diagnostic tools
- Spectrum analysis
- Oscilloscope
➤ Shaker mode

Model	ArisTT20	ArisTT75I	ArisTT75	ArisTT75X
Size（W×D×H）mm	450×300×80	300×450×65	300×450×80	400×500×80
Load（kg）	5 - 20	15 - 75	15 - 75	15 - 75
Actuator Force	Vertical：50N；Horizontal：25N
Active vibration isolation frequency（Hz）	0.5 – 100Hz
Structure	MVIS – Multi-layer vibration isolation structure
Degree of freedom	4		6
Vibration isolation performance	1Hz time is -8db
	2Hz time is -20db
Stabilization time	≤ 0.1 second
Real-time diagnostic tool	Built-in real-time 2-channel oscilloscope, real-time 2-channel spectrum analyzer
Real-time performance tuning	Real-time control of all 6 degrees of freedom / remote access
Input Power	AC 80-260V/50-60Hz

Model	ArisTT100	ArisTT150	ArisTT180	ArisTT200
Size（W×D×H）mm	400×500×80	400×500×80	500×600×80	600×800×80
Load（kg）	40 - 100	70 - 150	80 - 180	90 - 200
Actuator Force	Vertical：50N；Horizontal：25N
Active vibration isolation frequency（Hz）	0.5 – 100Hz
Structure	MVIS – Multi-layer vibration isolation structure
Degree of freedom	6 degree of freedom
Vibration isolation performance	1Hz time is -8db
	2Hz time is -20db
Stabilization time	≤ 0.1 second
Real-time diagnostic tool	Built-in real-time 2-channel oscilloscope, real-time 2-channel spectrum analyzer
Real-time performance tuning	Real-time control of all 6 degrees of freedom / remote access
Input Power	AC 80-260V/50-60H
