ALS-IC Air Spring Isolator

ALS-IC Air Spring Isolator Overview -

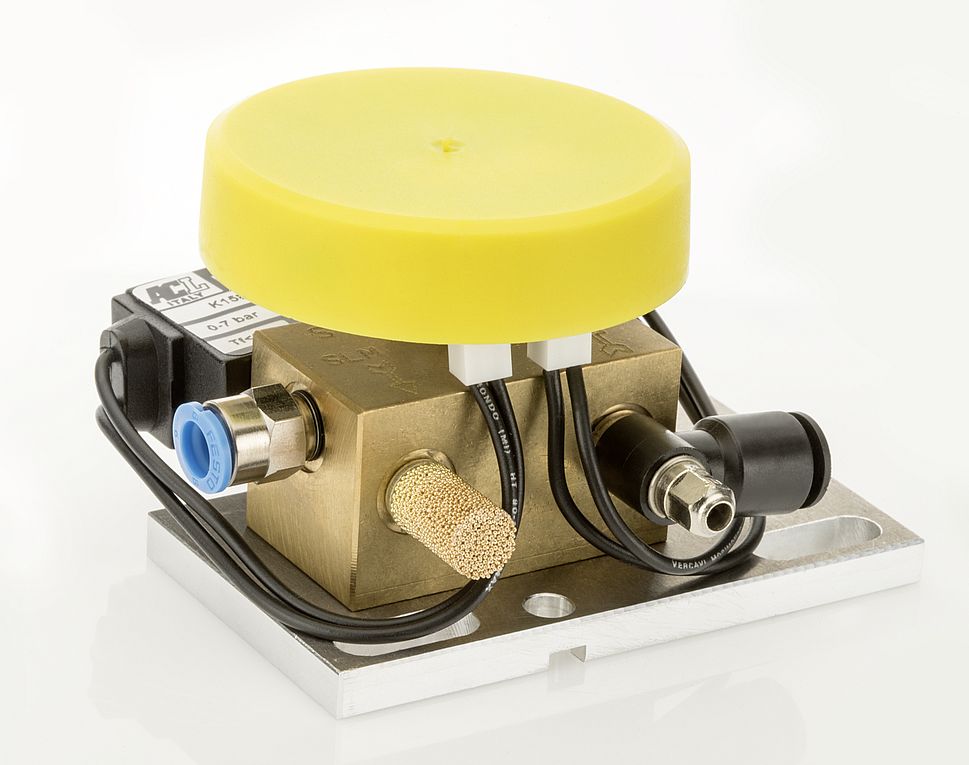

The embedded system includes controllers, sensors, and solenoid valves that work in a non-contact manner, react to changes in load, shifts in gravitational points, and reduce the transmission of vibrations. The electronic control works with proportional valves as well as on/off valves and is generally compatible with all manufacturers' air springs.
ALS-IC Air Spring Isolator Advantage +

Advantages of load adaptive control:
➤ Automatically adjusts to accommodate changes in Load and shift in center of gravity

➤ Non-contact sensor system

➤ Self-monitoring

➤ Can be integrated into device control

➤ Cooperate with the process control of the equipment

➤ Communication is simple

➤ Customizable parameters

➤ Fast on/off valve (3 ms response)

➤ MTTF > 10 years

Damping	160 series	310 series
Vertical (adjustable）	6-20%	6-20%
Horizontal	5-6%	5-6%

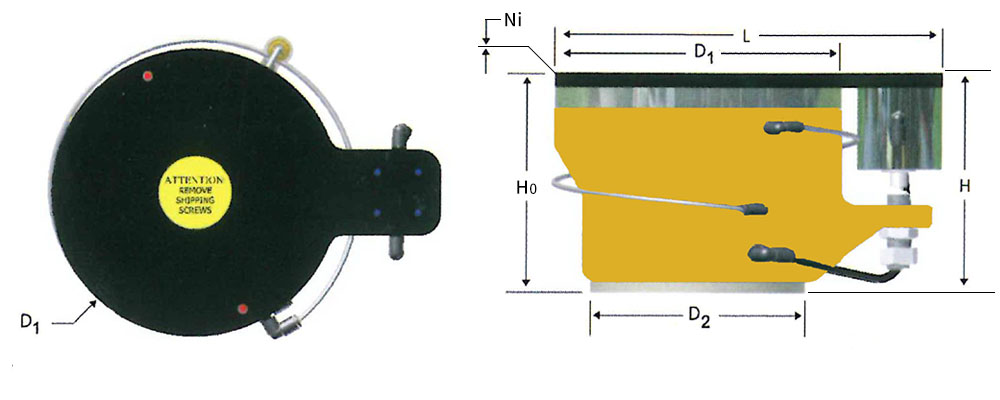

unit=mm

ALS-IC	160 series	310 series
Vertical natural frequency	2.5-2.7 Hz	1.5-1.7 Hz
Horizontal natural frequency	2.0-4.5 Hz	2.0-4.5 Hz
Height	157 mm	307 mm
