CBA-MD Air Spring Isolator

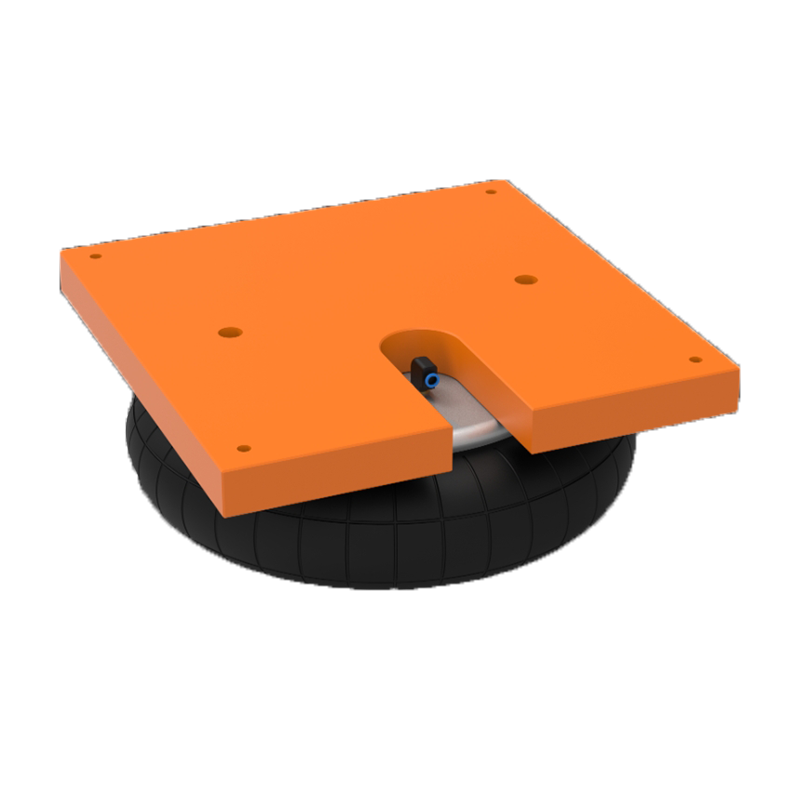

CBA-MD Air Spring Isolator Overview -

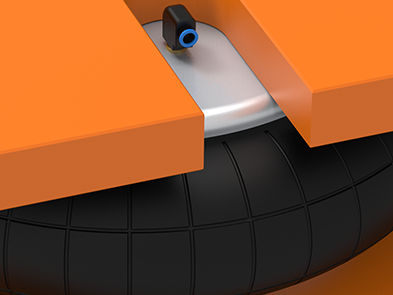

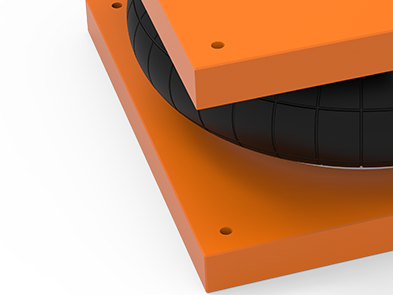

Airbag Design:
Pneumatic air spring are made of high-quality materials. Rubber airbags are vulcanized to form a reliable and permanent combination of rubber,

reinforcement and embedded metal parts.

Adaptability/Environment/Media:

Pneumatic air spring meet common environmental suitability requirements such as non-corrosive dust and contaminants, REACH, paint wetting inhibitors, RoHs inhibitors, etc.

Application Areas
➤ Vehicle Applications
➤ Automation Technology
➤ Transmission Technology
➤ Agricultural Technology
➤ Food Industry
➤ Paper and Textile Machinery
➤ Rail Vehicle Applications
➤ Wood Handling Equipment
➤ Drilling and Stamping
➤ Coastal and Water
CBA-MD Air Spring Isolator Advantage +

➤ Compact component height
➤ Suitable for angular movement
➤ No friction or stick-slip
➤ Lateral flexibility
➤ Easy to install
➤ High operational reliability
➤ Resistant to various media
➤ Cost-effective
➤ Maintenance-free
➤ Long service life
➤ Complete range of products
➤ Excellent service quality
CBA-MD Air Spring Isolator Performance +

Performance Range:

➤  Lifting forces from 0.5 - 440 kN

➤ Diameter 60 - 950 mm

➤  Strokes up to 455 mm

➤ Suitable for use with standard industrial compressed air

➤ Standard industrial size connection threads

➤  Can be equipped with standard valves

CBA-MD Air Spring Isolator Specifications +

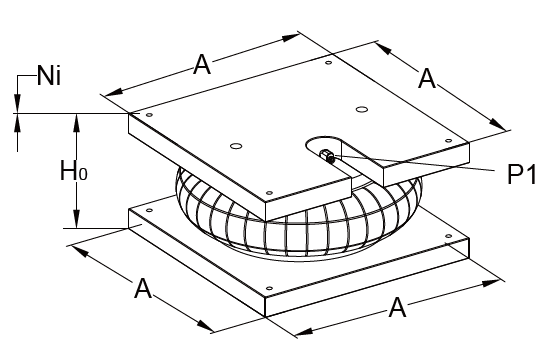

CBA-MD空气弹簧(图1)

CBA-MD series	Minimum installation height H0	Airbag maximum diameter	Fixing plate diameter A	Maximum recommended stroke	Maximum stroke Ni	p=force of 8 bar			Connectors variable	Standard air intake P1
CBA-MD series	Minimum installation height H0	Airbag maximum diameter	Fixing plate diameter A	Maximum recommended stroke	Maximum stroke Ni	At minimum height kN	Half-stroke kN	At maximum stroke kN	Connectors variable	Standard air intake P1
FS-40-6 CI	50	145	160	50	60	6.9	5.2	2.4	1	G1/8
FS-50-5 CI	51	150	165	34	44	9.0	5.4	2.2	2	G1/4
FS-70-7 CI	51	165	180	54	64	9.9	7.5	5.2	2	G1/4
FS-100-10 CI	51	210	225	79	94	14.7	11.0	1.6	2	G3/4
FS-120-9 CI	50	215	230	75	85	17.7	12.4	6.6	2	G3/4
FS-120-10 CI	51	231	245	79	99	19.5	15.0	4.6	2	G3/4
FS-120-12 CI	51	235	250	107	119	18.7	15.9	7.2	2	G3/4
FS-200-10 CI	51	250	265	74	89	23.8	17.5	9.1	3	G3/4
FS-330-11 CI	51	325	340	89	99	43.9	36.7	22.4	3	G3/4
FS-330-14 CI	51	343	360	100	129	47.3	37.8	13.0	3	G3/4
FS-530-11 CI	51	385	400	104	124	68.4	53.0	20.8	4	G3/4
FS-530-14 CI	51	405	420	109	134	69.6	60.2	35.2	4	G3/4
FS-960-12 CI	63	450	480	102	117	98.3	78.2	40.4	5	G3/4
FS-1330-11 CI	63	530	570	87	107	141.6	121.9	63.3	5	G3/4

unit=mm
