Rubber Isolator 22000 series

Rubber Isolator 22000 series Overview -

DESCRIPTION

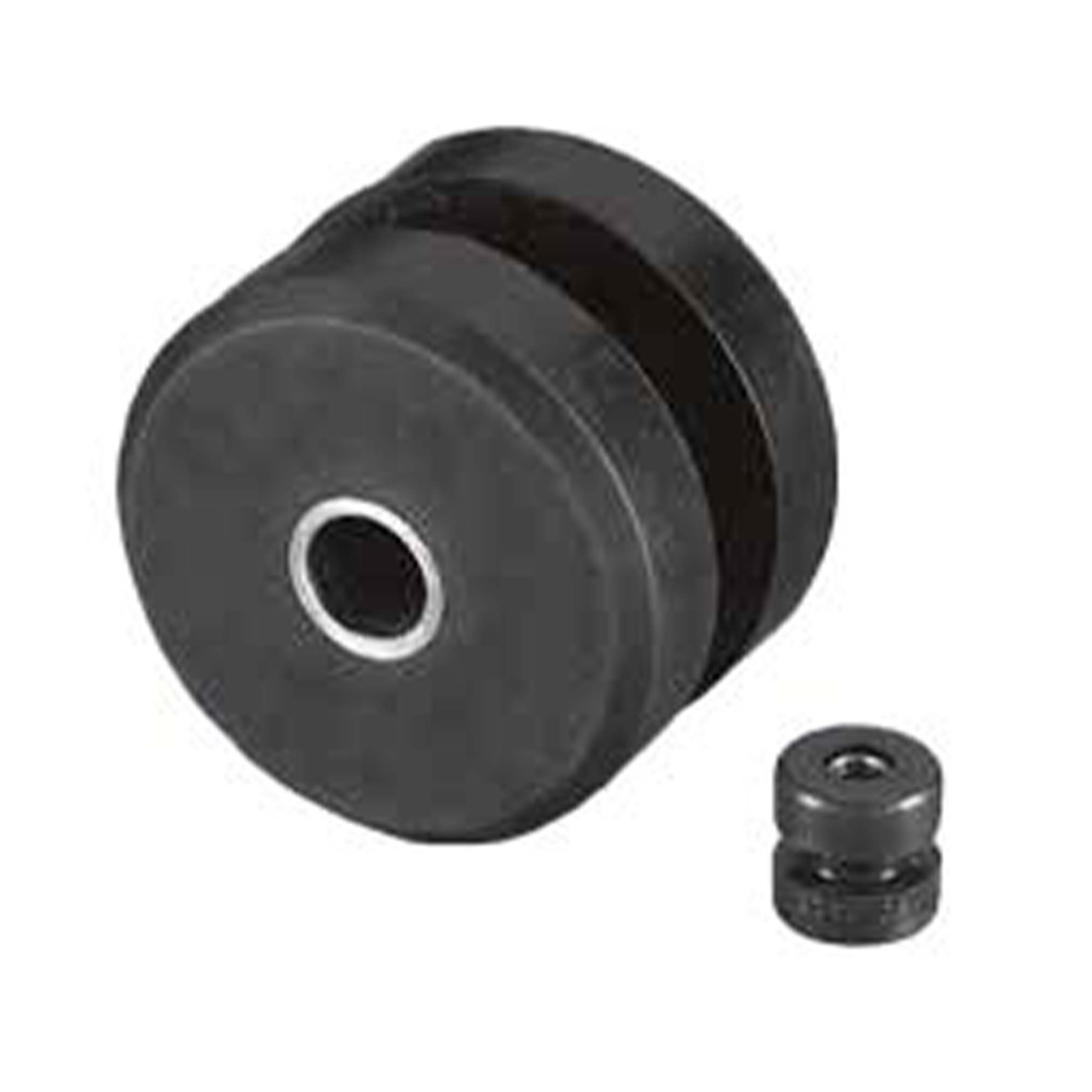

The 22000 mount is made of two parts of elastomer bonded to a central tube.

Interior reinforced : cylindrical tube.

Elastomer : chloroprene. Range of five different stiffnesses.

APPLICATION

22000 mounts can be used in static or mobiles applications, such as : pumps, compressors, generators,

electronic equipement, HVAC equipement, engines with internal combustion, transmissions,

plant cabs, radiators,etc.
Rubber Isolator 22000 series Advantage +

Advantages
➤Good isolation against structural noises.

➤ Chloroprene resistant to oils.

➤Simple ans economical.

➤Simple to fix.

➤ Five size for a load capacity under axial pressure from 18 to 954 daN and under radial pressure until 443 daN

➤ Anti-rebound effect when it is assembled with a washer.

Rubber Isolator 22000 series Performance +

OPERATION

The design of the 22000 mount gives the following basic characteristics :

➤ elastomer element resistant to oils, supporting axial and radial loadings;

➤ axial to radial stiffness of 1:1;

➤ absorb vibration and reduce noise in all directions.

Technical Features:
➤ 5 different size specifications
➤ 25 different load-bearing models
➤ Small load capacity: 18 kg
➤ Large load capacity: 2000 kg
➤ Natural frequency: 8 - 18 Hz
➤ Uniform stiffness in all directions
➤ Failure-proof design, suitable for harsh conditions
➤ Material: Neoprene, natural rubber
➤ Operating temperature: -40℃ ~ 82℃

OPERATING CHARACTERISTICS

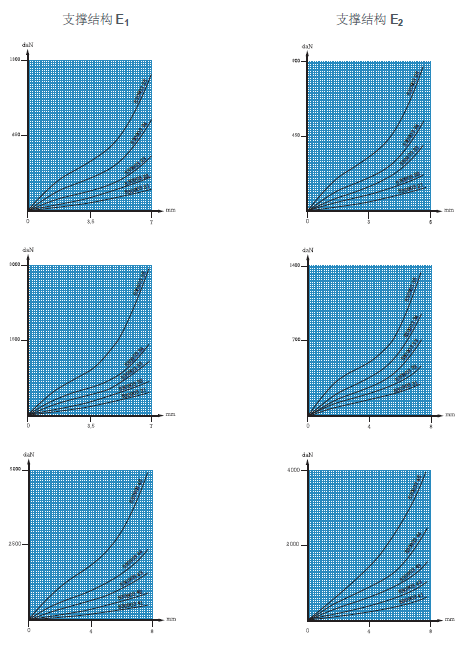

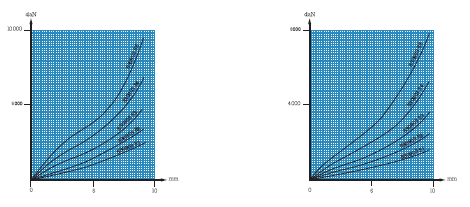

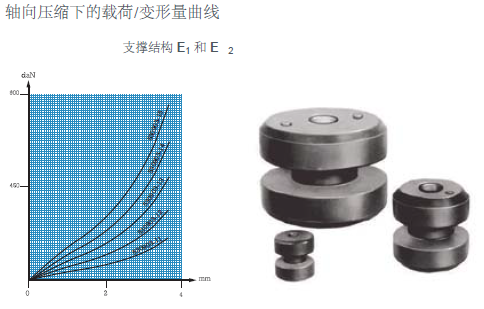

Maximum loadings depend on the compression of the assembly by comparing the thicknesses E1 and E2.

Paulstra reference	Barry Controls* Reference	Support structure thickness E1 Load per mount				Support structure thickness E2 Load per mount				Colour marking
		Axial (daN)	Radial (daN)	Fo (Hz)	E1 (mm)	Axial (daN)	Radial (daN)	Fo (Hz)	E2 (mm)
		Axial (daN)	Radial (daN)	Fo (Hz)	E1 (mm)	Axial (daN)	Radial (daN)	Fo (Hz)	E2 (mm)
530903 11	22001-11	18	9			18	9			Red & White
530903 12	22001-12	40	13			40	13			Yellow & White
530903 13	22001-13	63	18	15	9,5	63	18	15	9,5	Green & White
530903 14	22001-14	113	22			113	22			Blue & White
530903 15	22001-15	136	27			136	27			Purple & White
530903 21	22002-11	59	22			27	18			Red & White
530903 22	22002-12	79	29			54	36			Yellow & White
530903 23	22002-13	109	40	12	14	72	56	15	12,5	Green & White
530903 24	22002-14	172	75			118	81			Blue & White
530903 25	22002-15	286	127			172	127			Purple & White
530903 31	22003-11	95	40			40	31			Red & White
530903 32	22003-12	159	63			68	47			Yellow & White
530903 33	22003-13	222	102	11	22	102	72	15	19	Green & White
530903 34	22003-14	390	175			147	111			Blue & White
530903 35	22003-15	604	313			227	163			Purple & White
530903 41	22004-11	122	61			68	50			Red & White
530903 42	22004-12	231	104			136	100			Yellow & White
530903 43	22004-13	350	156	10	28,5	181	136	15	25,5	Green & White
530903 44	22004-14	531	268			227	181			Blue & White
530903 45	22004-15	954	443			272	263			Purple & White
530903 51	22005-11	518	109			136	68			Red & White
530903 52	22005-12	877	154			227	100			Yellow & White
530903 53	22005-13	1 172	277	10	32	318	136	15	25,5	Green & White
530903 54	22005-14	1 609	404			409	213			Blue & White
530903 55	22005-15	2 072	640			545	300			Purple & White
