OPTSS Stainless Steel Optical Platform
-
OPTSS Stainless Steel Optical Platform Overview -

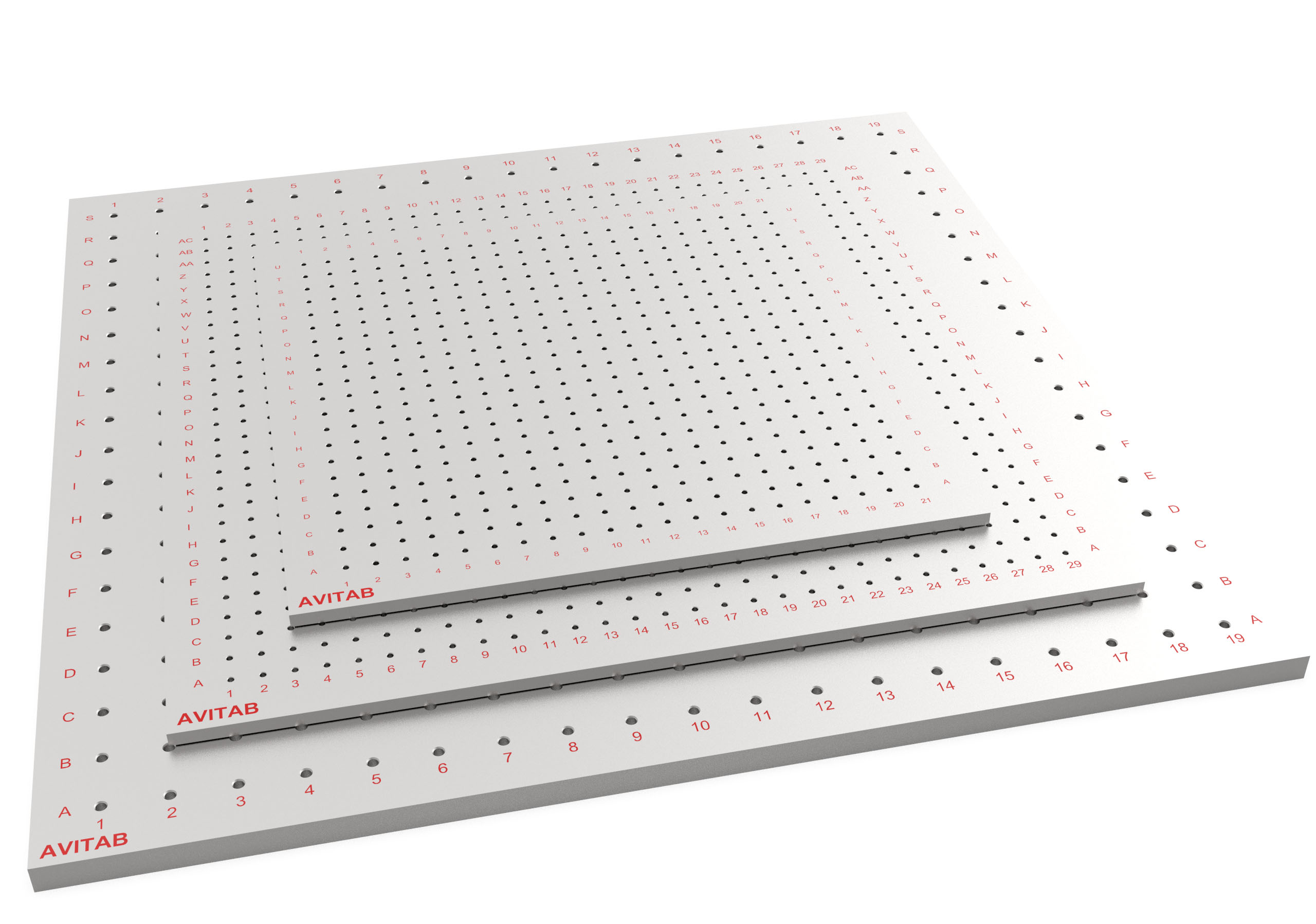

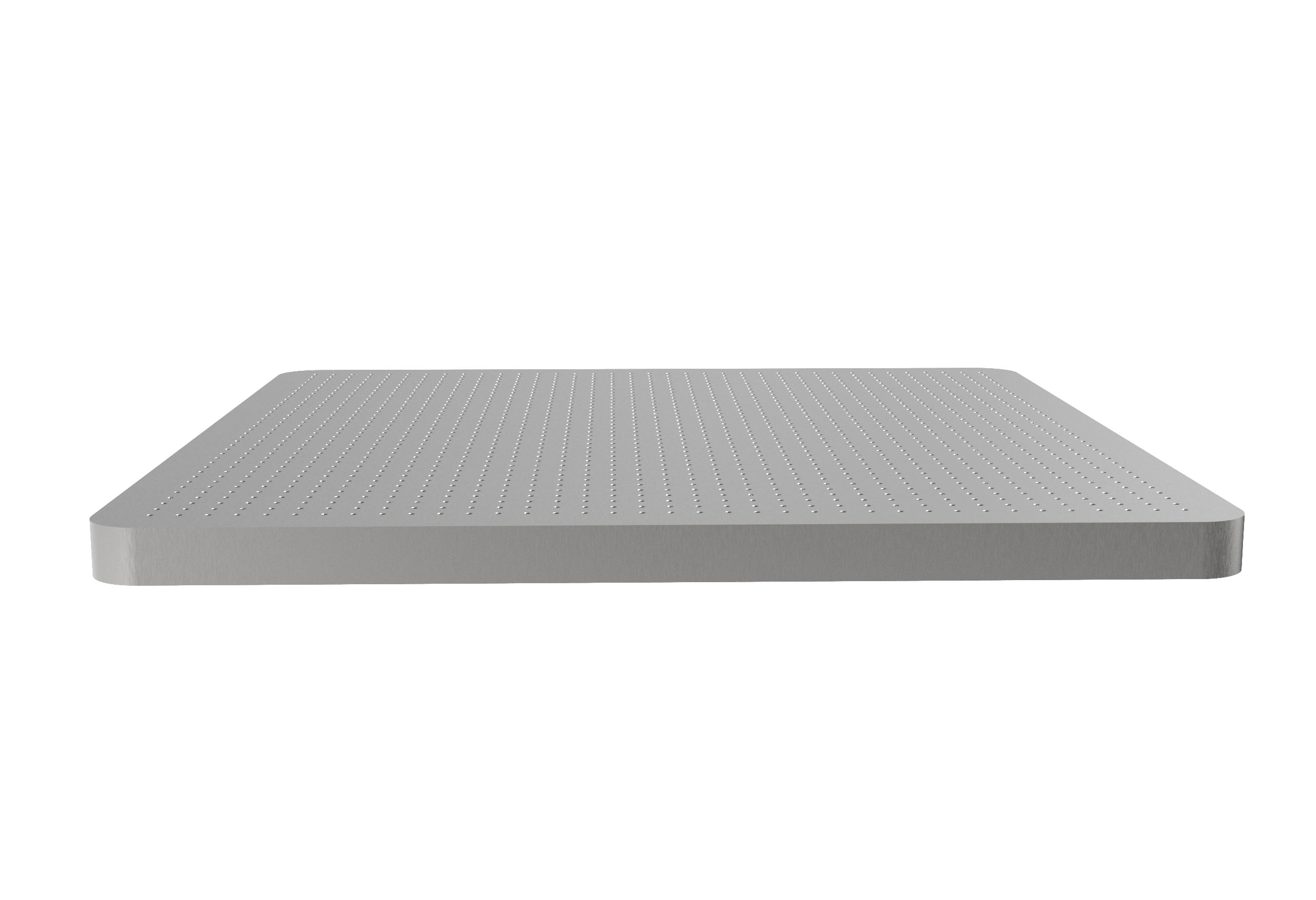

The solid stainless steel optical test plates have a thickness of 12.5/25 mm and feature a hard, vacuum-compatible magnetic surface for mounting small equipment. The breadboards have standard through holes spaced 25 mm apart, and 50 mm from the edge of the breadboard.
These test plates can also be used in a vacuum. After passivation, the test plates are double-bagged in a clean environment to prevent contamination during transport to the cleanroom. These breadboards should be handled with gloves to prevent the surface from being contaminated by skin oils. For use in vacuum-sensitive systems, they should first be thoroughly dried in an oven to remove moisture and surface volatiles. Additional cleaning may be required depending on system requirements.
-
OPTSS Stainless Steel Optical Platform Advantage +
-
OPTSS Stainless Steel Optical Platform Performance +
-
OPTSS Stainless Steel Optical Platform Specifications +
