BenchTop-MSN Desktop Isolator

BenchTop-MSN Desktop Isolator Overview -

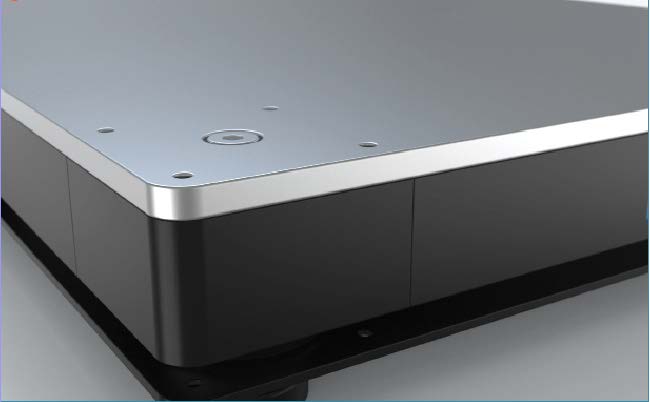

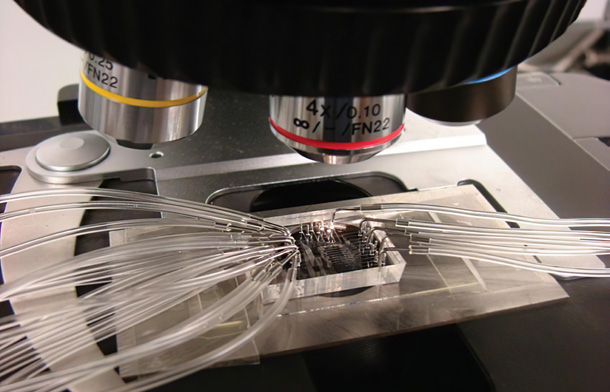

The BenchTop-MSN series is a small instrument vibration isolation platform made with multiple steel spring dampers. These rectangular isolation platforms are ideal for isolating laboratory equipment such as balances, petri dishes, and smaller low- to medium-power microscopes.
BenchTop-MSN Desktop Isolator Advantage +

➤ This vibration isolation platform has good passive isolation performance and is suitable for applications with low requirements.
➤ Uses four MSN series helical steel spring isolators.
➤ Equipped with a self-adjusting leveling control unit.
➤ Natural frequency of 4 - 5 Hz.
➤ Attractive appearance design.

Model	0304	0405	0506	0608	0810
Size mm	300x400	400x500	500x600	600x800	800x1000
Height mm	100
Load kg	15-145
Natural frequency Hz	3.5
Desktop material	Aluminum sheet
Option	1. Marble countertop 2. Threaded hole
